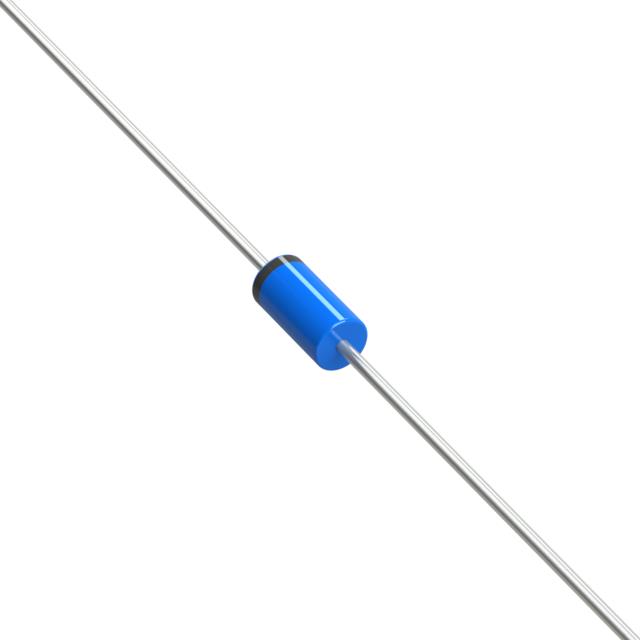

JANTXV1N4970D
VOLTAGE REGULATORManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Microchip Technology JANTXV1N4970D is a 33V, 5W Zener diode with a tight ±1% tolerance. This component is designed for demanding applications requiring high reliability and performance, as evidenced by its MIL-PRF-19500/356 qualification and military-grade designation. Featuring a low reverse leakage of 2 µA at 25.1V and a maximum Zener impedance (Zzt) of 10 Ohms, it ensures stable voltage regulation. The axial leaded package (E, Axial) is suitable for through-hole mounting. Operating across a wide temperature range of -65°C to 175°C (TJ), this device finds application in aerospace, defense, and industrial systems where robust voltage regulation is critical. The forward voltage (Vf) is a maximum of 1.5V at 1A.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±1% |
| Packaging | Bulk |
| Package / Case | E, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 33 V |
| Impedance (Max) (Zzt) | 10 Ohms |
| Supplier Device Package | E, Axial |
| Grade | Military |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 25.1 V |
| Qualification | MIL-PRF-19500/356 |
