JANTXV1N4109-1
DIODE ZENER 15V 500MW DO35Manufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

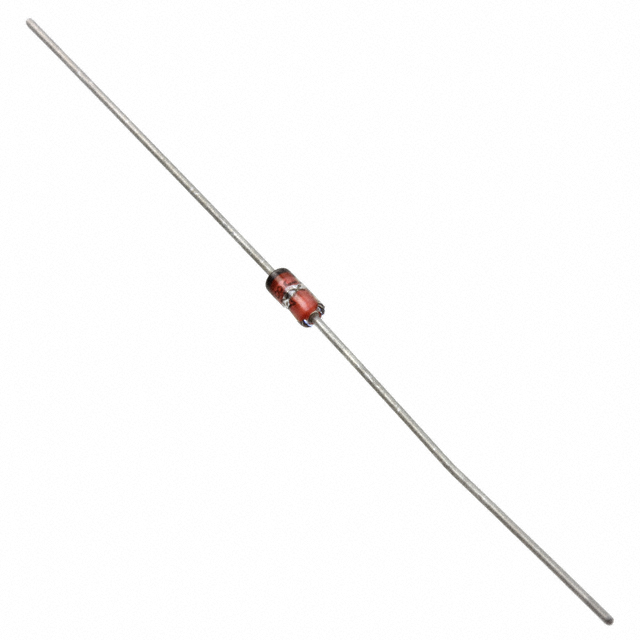

Microchip Technology JANTXV1N4109-1 is a Zener diode offering a nominal breakdown voltage of 15V with a ±5% tolerance. This component is rated for 500mW of power dissipation and features a low reverse leakage current of 50 nA at 11.4V. Its maximum Zener impedance (Zzt) is specified at 100 Ohms. The JANTXV1N4109-1 is packaged in a DO-204AH (DO-35) axial package, suitable for through-hole mounting. It operates across a wide temperature range of -65°C to 175°C. This device meets the stringent requirements of MIL-PRF-19500/435 qualification, making it suitable for demanding applications in aerospace, defense, and high-reliability industrial sectors. The forward voltage (Vf) at 200mA is a maximum of 1.1V.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Impedance (Max) (Zzt) | 100 Ohms |
| Supplier Device Package | DO-204AH (DO-35) |
| Grade | Military |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 50 nA @ 11.4 V |
| Qualification | MIL-PRF-19500/435 |
