JANTX1N5525B-1/TR
VOLTAGE REGULATORManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

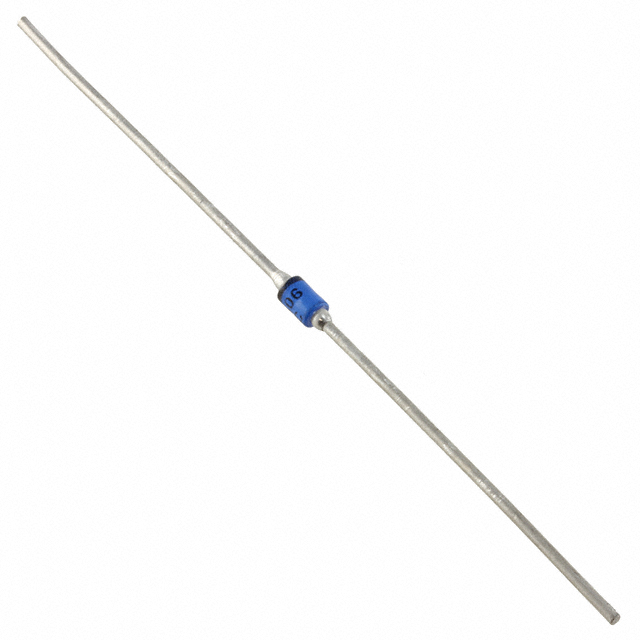

Microchip Technology JANTX1N5525B-1-TR is a 500 mW axial leaded Zener diode with a nominal Zener voltage of 6.2 V and a ±5% tolerance. This military-grade component, qualified to MIL-PRF-19500/437, features a low reverse leakage of 1 µA at 5 V and a maximum Zener impedance (Zzt) of 30 Ohms. The diode has a forward voltage (Vf) of 1.1 V at 200 mA. Operating across a wide temperature range of -65°C to 175°C, the JANTX1N5525B-1-TR is housed in a standard DO-204AH (DO-35) package and is supplied on tape and reel. This component is widely utilized in demanding applications within the aerospace, defense, and industrial sectors requiring robust voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 6.2 V |
| Impedance (Max) (Zzt) | 30 Ohms |
| Supplier Device Package | DO-204AH (DO-35) |
| Grade | Military |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 5 V |
| Qualification | MIL-PRF-19500/437 |
Request a Quote
Clients Also Buy

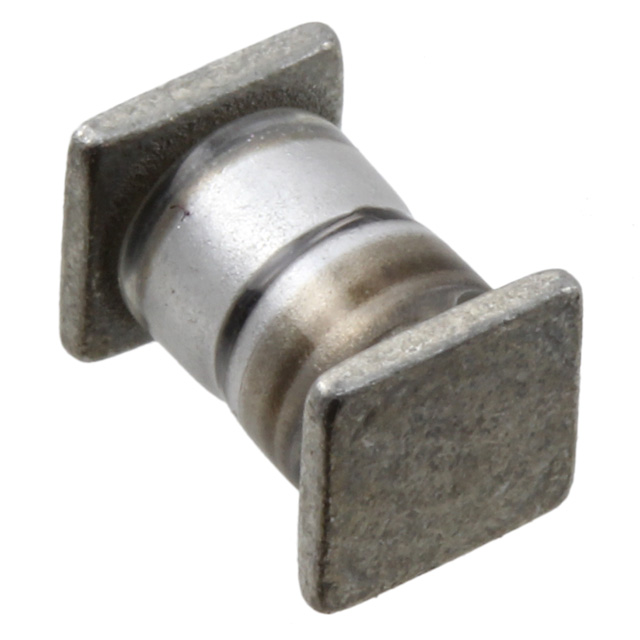

JANTXV1N6340US
ZENER DIODE

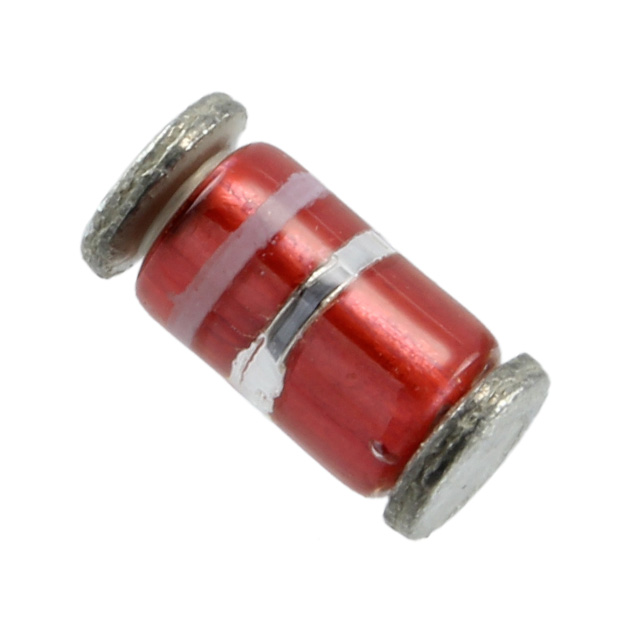

MX1N3312D
