JANTX1N4984CUS/TR
VOLTAGE REGULATORManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

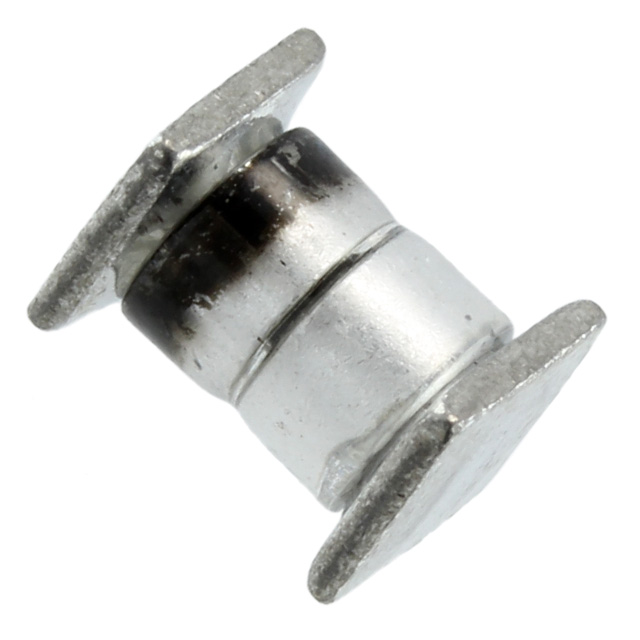

Microchip Technology JANTX1N4984CUS-TR is a 5W Zener diode with a nominal breakdown voltage of 120V and a tight ±2% tolerance. This military-grade component, qualified to MIL-PRF-19500/356, features a low reverse leakage of 2 µA at 91.2 V and a maximum Zener impedance of 170 Ohms. Its E-MELF package (SQ-MELF, E) is designed for surface mounting and is supplied in Tape & Reel. The operating temperature range is -65°C to 175°C. This device is suitable for applications requiring stable voltage regulation in demanding environments, commonly found in aerospace, defense, and high-reliability industrial systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±2% |
| Packaging | Tape & Reel (TR) |
| Package / Case | SQ-MELF, E |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 120 V |
| Impedance (Max) (Zzt) | 170 Ohms |
| Supplier Device Package | E-MELF |
| Grade | Military |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 91.2 V |
| Qualification | MIL-PRF-19500/356 |
