JANTX1N4969
DIODE ZENER 30V 5WManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

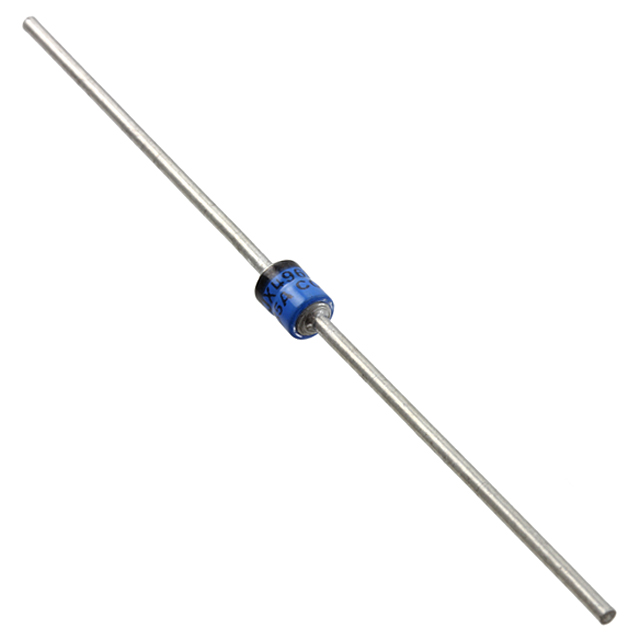

Microchip Technology's JANTX1N4969 is a military-grade Zener diode designed for demanding applications. This through-hole component offers a precise 30V Zener voltage with a tight ±5% tolerance and a robust 5W power rating. Featuring low reverse leakage of 2 µA at 22.8V and a maximum Zener impedance of 8 Ohms, the JANTX1N4969 ensures stable voltage regulation. Its operating temperature range of -65°C to 175°C and MIL-PRF-19500/356 qualification make it suitable for aerospace, defense, and high-reliability industrial systems. The axial package is provided in bulk for efficient integration into manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | E, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 30 V |
| Impedance (Max) (Zzt) | 8 Ohms |
| Supplier Device Package | - |
| Grade | Military |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 22.8 V |
| Qualification | MIL-PRF-19500/356 |
