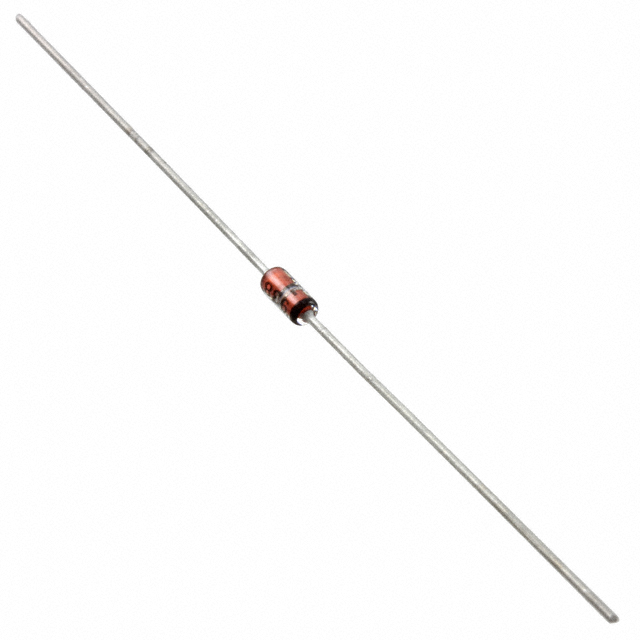

JANTX1N4482/TR
VOLTAGE REGULATORManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Microchip Technology JANTX1N4482-TR is a 1.5W Zener diode with a nominal breakdown voltage of 51V and a ±5% tolerance. This military-grade component features a low reverse leakage current of 50nA at 40.8V and a maximum impedance of 60 Ohms. Designed for through-hole mounting, it is supplied in a DO-204AL (DO-41) axial package and available on tape and reel. The JANTX1N4482-TR operates within a temperature range of -65°C to 175°C and meets MIL-PRF-19500/406 qualification standards. It finds application in aerospace, defense, and high-reliability industrial systems requiring precise voltage regulation and robust performance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 51 V |
| Impedance (Max) (Zzt) | 60 Ohms |
| Supplier Device Package | DO-204AL (DO-41) |
| Grade | Military |
| Power - Max | 1.5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 50 nA @ 40.8 V |
| Qualification | MIL-PRF-19500/406 |
Request a Quote
