JANTX1N4467US
DIODE ZENER 12V 1.5W MELFManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

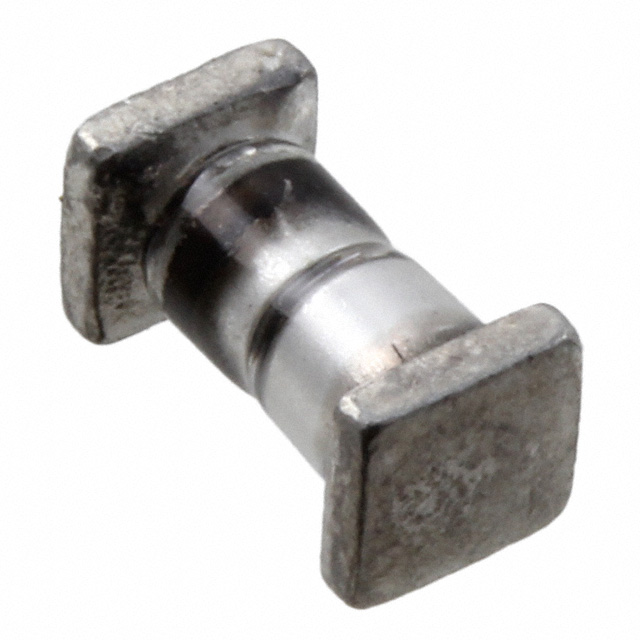

Microchip Technology JANTX1N4467US is a 1.5 W MELF Zener diode with a nominal breakdown voltage of 12 V. This component offers a tight tolerance of ±5% for precise voltage regulation. Designed for demanding applications, it features a low reverse leakage current of 200 nA at 9.6 V and a maximum Zzt impedance of 7 Ohms. The MELF, D5A (DO-213AB) package ensures reliable surface mounting and thermal performance. Operating across a wide temperature range of -65°C to 175°C, this diode meets MIL-PRF-19500/406 qualification, making it suitable for aerospace and defense, industrial control, and high-reliability power management systems. The forward voltage is rated at a maximum of 1.5 V at 1 A.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | DO-213AB, MELF (Glass) |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 12 V |
| Impedance (Max) (Zzt) | 7 Ohms |
| Supplier Device Package | MELF, D5A |
| Grade | Military |
| Power - Max | 1.5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 200 nA @ 9.6 V |
| Qualification | MIL-PRF-19500/406 |
