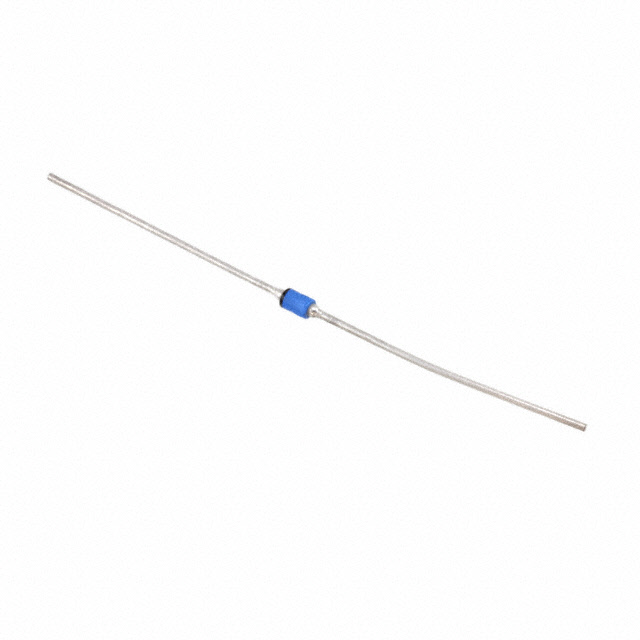

JANTX1N4464
DIODE ZENER 9.1V 1.5W DO41Manufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Microchip Technology JANTX1N4464, a Zener Diode, offers a nominal breakdown voltage of 9.1V with a tight ±5% tolerance. This 1.5W axial-leaded device, packaged in a DO-41 (DO-204AL) case, features a low reverse leakage of 300 nA at 5.46V and a maximum Zener impedance of 4 Ohms. Designed for demanding applications, it operates across a wide temperature range of -65°C to 175°C and is qualified to MIL-PRF-19500/406, indicating its suitability for military and high-reliability environments. The JANTX1N4464 is commonly found in voltage regulation and surge protection circuits within aerospace, defense, and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 9.1 V |
| Impedance (Max) (Zzt) | 4 Ohms |
| Supplier Device Package | DO-41 |
| Grade | Military |
| Power - Max | 1.5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 300 nA @ 5.46 V |
| Qualification | MIL-PRF-19500/406 |
