JANS1N4567AUR-1
ZENER DIODEManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

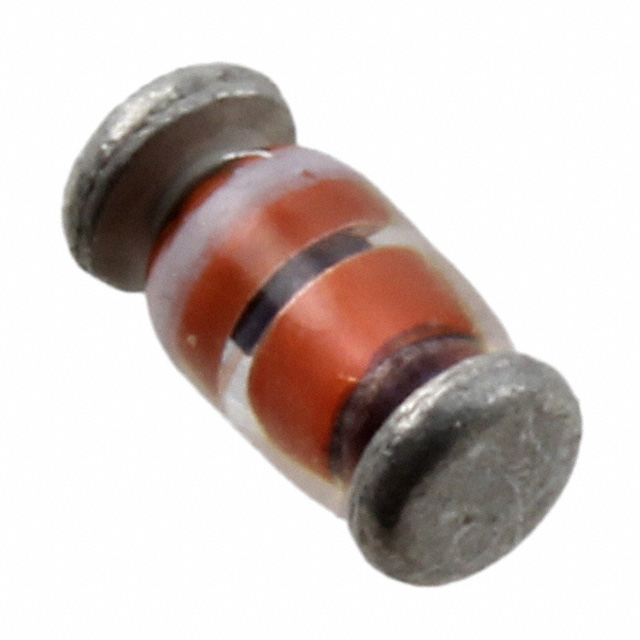

Microchip Technology JANS1N4567AUR-1 is a military-grade Zener diode designed for high-reliability applications. This surface-mount component, housed in a DO-213AA package, offers a nominal Zener voltage of 6.4 V with a tight tolerance of ±5%. It is rated for a maximum power dissipation of 500 mW. Key electrical characteristics include a reverse leakage current of 2 µA at 3 V and a maximum Zener impedance (Zzt) of 200 Ohms. The operating temperature range extends from -65°C to 175°C. This device meets the stringent requirements of MIL-PRF-19500/452 qualification, making it suitable for use in aerospace, defense, and other demanding industrial sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | DO-213AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C (TA) |
| Voltage - Zener (Nom) (Vz) | 6.4 V |
| Impedance (Max) (Zzt) | 200 Ohms |
| Supplier Device Package | DO-213AA |
| Grade | Military |
| Power - Max | 500 mW |
| Current - Reverse Leakage @ Vr | 2 µA @ 3 V |
| Qualification | MIL-PRF-19500/452 |
