1N4978
DIODE ZENER 68V 5W AXIALManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

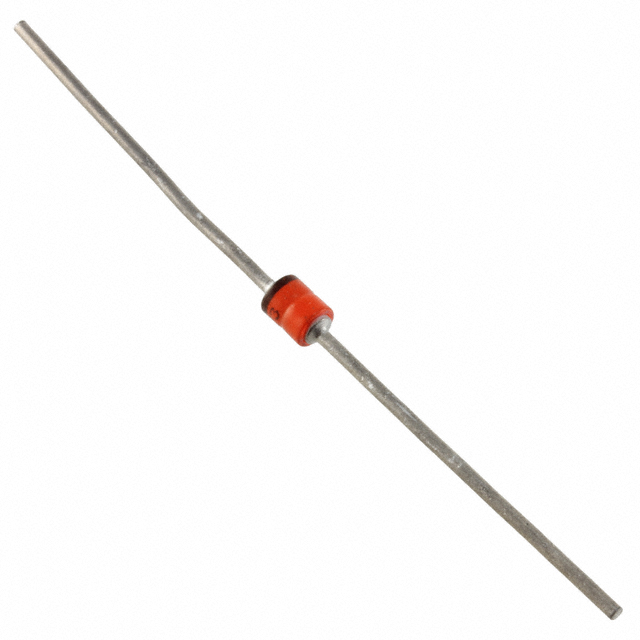

Microchip Technology 1N4978 Zener Diode, 68V, 5W, ±5% tolerance, axial package. This through-hole component offers a Zener voltage (Vz) of 68V and a maximum power dissipation of 5W. Key parameters include a maximum forward voltage (Vf) of 1.5V at 1A and a reverse leakage current of 2µA at 51.7V. The impedance (Zzt) is rated at a maximum of 50 Ohms. Operating temperature range is -65°C to 175°C. This component is suitable for applications in industrial power supplies and voltage regulation circuits. Packaged in bulk.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | E, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 68 V |
| Impedance (Max) (Zzt) | 50 Ohms |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 51.7 V |
Request a Quote
