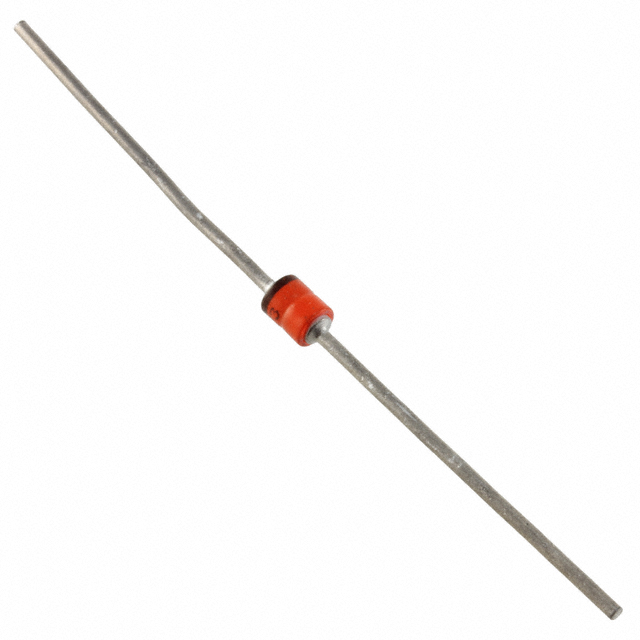

1N4965
DIODE ZENER 20V 5W AXIALManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Microchip Technology's 1N4965 is a 5W axial leaded Zener diode with a nominal breakdown voltage of 20V and a ±5% tolerance. This device features a low reverse leakage current of 2 µA at 15.2V and a maximum Zener impedance (Zzt) of 4.5 Ohms. The 1N4965 is designed for through-hole mounting and operates across a wide temperature range of -65°C to 175°C. With a maximum forward voltage of 1.5V at 1A, this component is suitable for voltage regulation and reference applications in demanding environments, including industrial control systems and power supplies. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | E, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 20 V |
| Impedance (Max) (Zzt) | 4.5 Ohms |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 15.2 V |
Request a Quote
