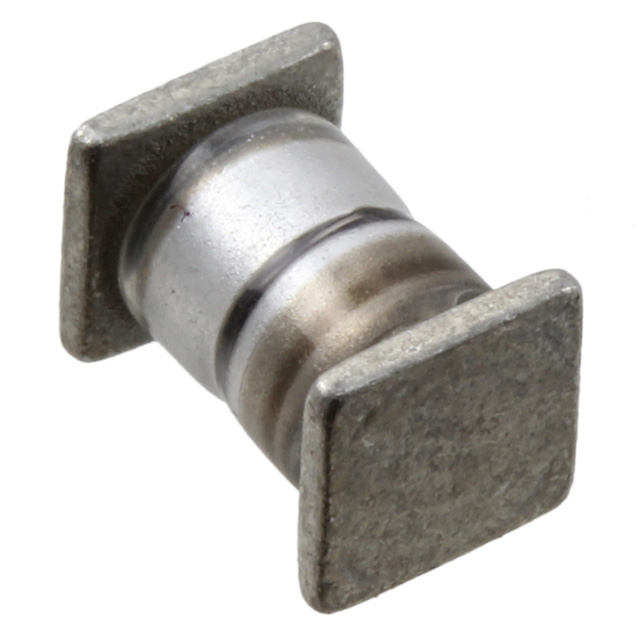

1N4476US
DIODE ZENERManufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More
Microchip Technology 1N4476US is a Zener Diode designed for precise voltage regulation. This component offers a nominal Zener voltage (Vz) of 30 V with a tight tolerance of ±5%. Its 1.5 W power dissipation capability, coupled with a low reverse leakage of 50 nA at 24 V, makes it suitable for demanding applications. The maximum impedance (Zzt) is 20 Ohms.
The 1N4476US features a surface mount SQ-MELF, A package, engineered for efficient thermal performance and compact board layouts. It operates reliably across a wide temperature range from -65°C to 175°C (TJ). This device finds application in power supply circuits, voltage clamping, and general voltage regulation across various industries, including industrial automation and telecommunications. The part is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | SQ-MELF, A |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 30 V |
| Impedance (Max) (Zzt) | 20 Ohms |
| Supplier Device Package | A, SQ-MELF |
| Power - Max | 1.5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 50 nA @ 24 V |
