1N3311B
DIODE ZENER 12V 50W DO5Manufacturer: Microchip Technology
Categories: Single Zener Diodes
Quality Control: Learn More

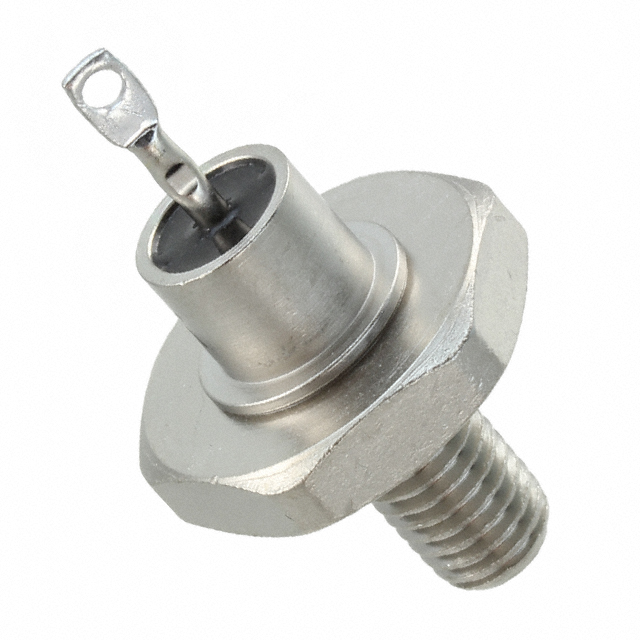

Microchip Technology 1N3311B is a 50W Zener diode with a nominal breakdown voltage of 12V and a tolerance of ±5%. This chassis, stud mount device is housed in a DO-5 (DO-203AB) package. Key specifications include a maximum forward voltage of 1.5V at 10A and a reverse leakage current of 10µA at 9.1V. The Zener impedance (Zzt) is a maximum of 1 Ohm. Operating temperature range is -65°C to 175°C. This component is suitable for applications requiring stable voltage regulation in demanding environments, commonly found in power supplies, industrial controls, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 12 V |
| Impedance (Max) (Zzt) | 1 Ohms |
| Supplier Device Package | DO-5 |
| Power - Max | 50 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 10 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 9.1 V |
