VP2450N8-G
MOSFET P-CH 500V 160MA TO243AAManufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 500 V 160mA (Tj) 1.6W (Ta) Surface Mount TO-243AA (SOT-89)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 160mA (Tj) |
| Rds On (Max) @ Id, Vgs | 30Ohm @ 100mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta) |
| Vgs(th) (Max) @ Id | 3.5V @ 1mA |
| Supplier Device Package | TO-243AA (SOT-89) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 500 V |
| Input Capacitance (Ciss) (Max) @ Vds | 190 pF @ 25 V |
Request a Quote
Clients Also Buy

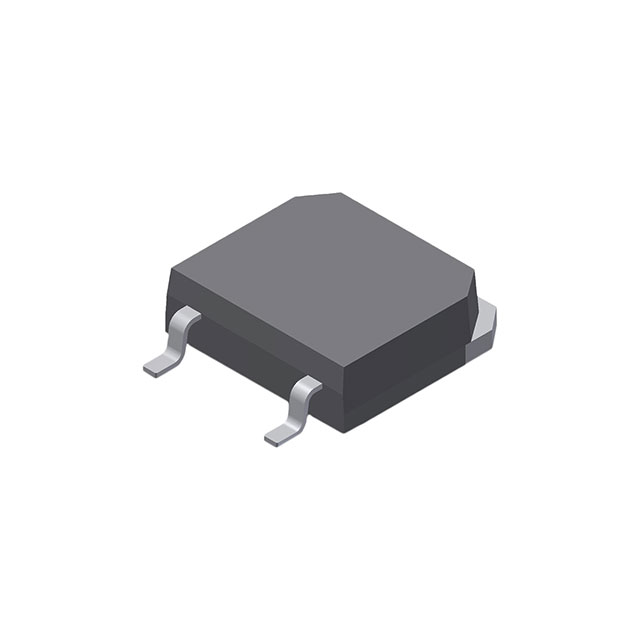

APT5020SVFRG/TR
