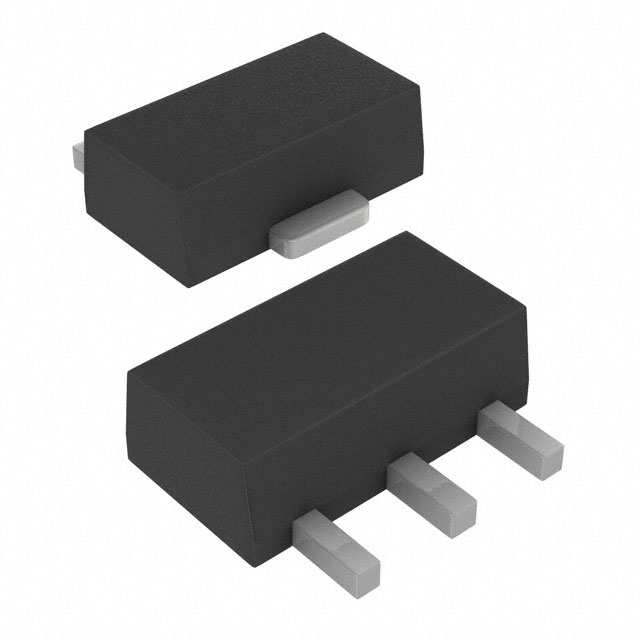

TN2501N8-G
MOSFET N-CH 18V 400MA TO243AAManufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 18 V 400mA (Tj) 1.6W (Tc) Surface Mount TO-243AA (SOT-89)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Tj) |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 200mA, 3V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Supplier Device Package | TO-243AA (SOT-89) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 3V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 110 pF @ 15 V |
