MSC080SMA330B4N
MOSFET SIC 3300V 80 MOHM TO-247-Manufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More

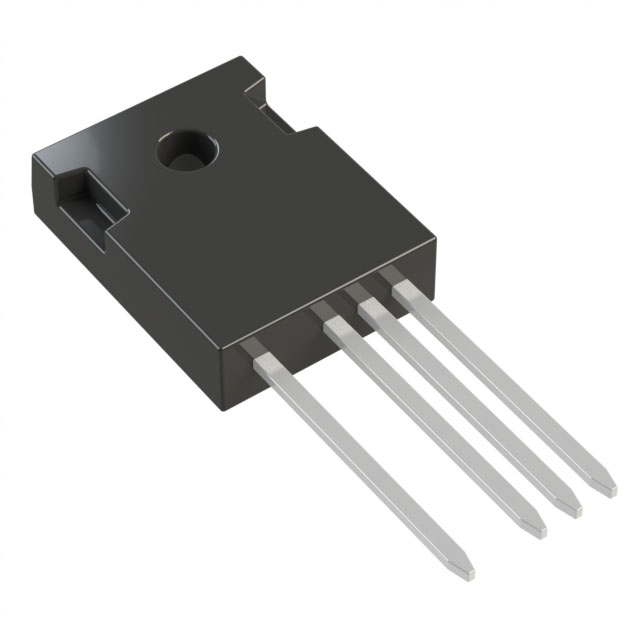

N-Channel 3300 V 41A (Tc) 381W (Tc) Through Hole TO-247-4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 41A (Tc) |
| Rds On (Max) @ Id, Vgs | 105mOhm @ 30A, 20V |
| FET Feature | - |
| Power Dissipation (Max) | 381W (Tc) |
| Vgs(th) (Max) @ Id | 2.97V @ 3mA |
| Supplier Device Package | TO-247-4 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Vgs (Max) | +23V, -10V |
| Drain to Source Voltage (Vdss) | 3300 V |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC @ 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3462 pF @ 2.4 kV |
| Qualification | - |
