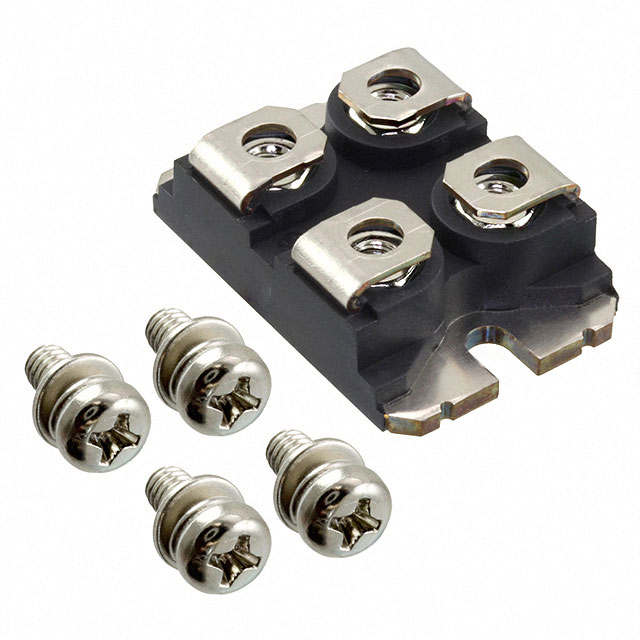

MSC017SMA120J
MOSFET SIC 1200V 17 MOHM SOT-227Manufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 88A (Tc) 278W (Tc) SOT-227
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 88A (Tc) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 40A, 20V |
| Power Dissipation (Max) | 278W (Tc) |
| Vgs(th) (Max) @ Id | 2.7V @ 4.5mA (Typ) |
| Supplier Device Package | SOT-227 |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Vgs (Max) | +23V, -10V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 249 nC @ 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5280 pF @ 1000 V |
