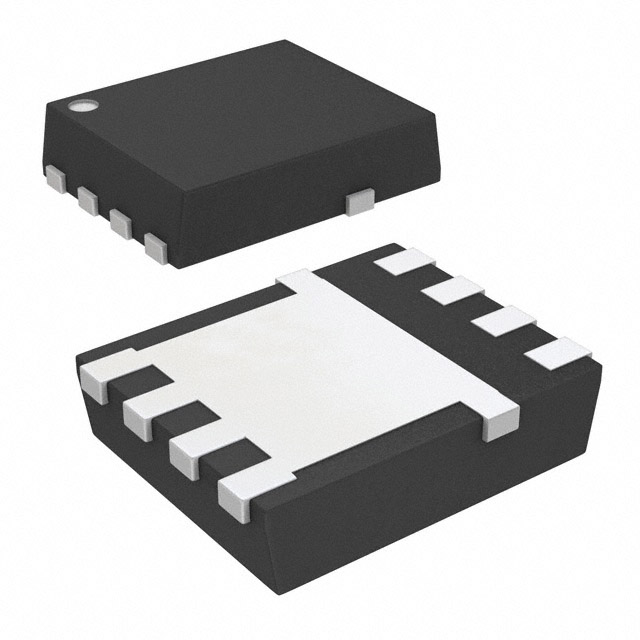

MCP87055T-U/LC
MOSFET N-CH 25V 60A 8PDFNManufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Microchip Technology MCP87055T-U-LC is an N-Channel MOSFET designed for high-efficiency power conversion. This component features a 25V drain-source breakdown voltage and supports a continuous drain current of 60A at 25°C case temperature. The device exhibits a low on-resistance of 6mOhm maximum at 20A and 10V gate-source voltage, facilitating minimal conduction losses. Key parameters include a gate charge of 14 nC maximum at 4.5V Vgs and an input capacitance of 890 pF maximum at 12.5V Vds. The MCP87055T-U-LC is housed in an 8-PDFN (3.3x3.3) surface mount package, offering excellent thermal performance with a power dissipation of 1.8W at 25°C ambient. Operating across a temperature range of -55°C to 150°C, this MOSFET is suitable for applications in automotive, industrial power supplies, and battery management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta) |
| Vgs(th) (Max) @ Id | 1.7V @ 250µA |
| Supplier Device Package | 8-PDFN (3.3x3.3) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | +10V, -8V |
| Drain to Source Voltage (Vdss) | 25 V |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 890 pF @ 12.5 V |
