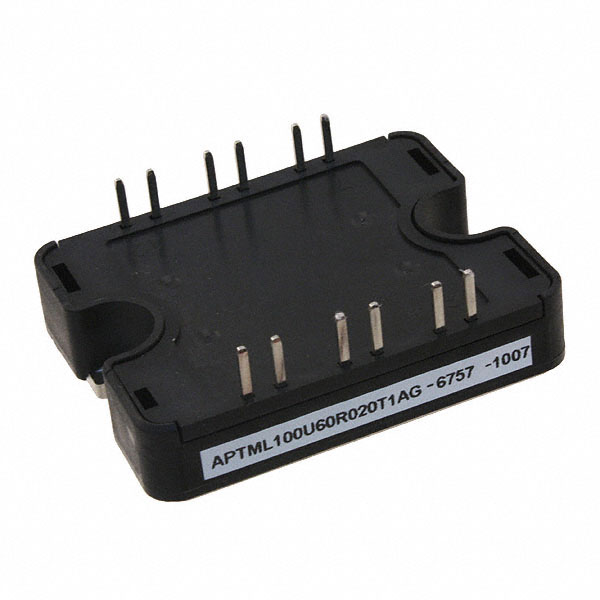

APTML100U60R020T1AG
MOSFET N-CH 1000V 20A SP1Manufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1000 V 20A (Tc) 520W (Tc) Chassis Mount SP1
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP1 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 720mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 520W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA |
| Supplier Device Package | SP1 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 1000 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6000 pF @ 25 V |
Request a Quote
