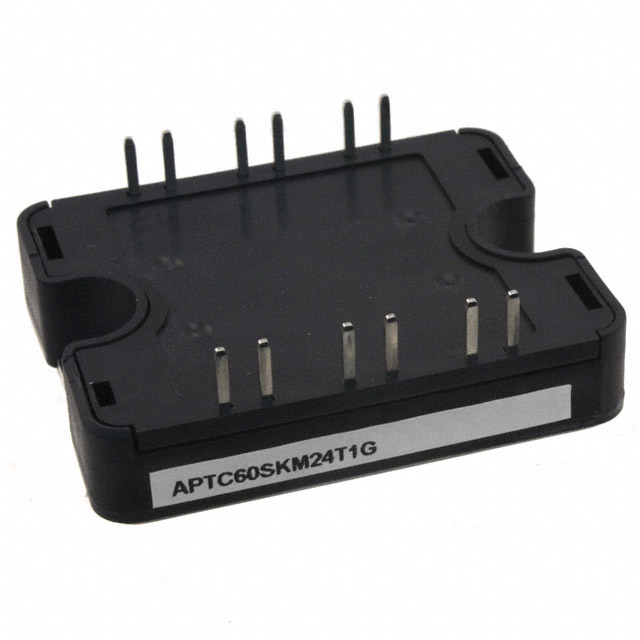

APTC60SKM24T1G
MOSFET N-CH 600V 95A SP1Manufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Microchip Technology CoolMOS™ APTC60SKM24T1G is an N-Channel power MOSFET designed for high-efficiency power conversion. This component features a 600V drain-source voltage (Vdss) and a continuous drain current (Id) rating of 95A at 25°C (Tc), with a maximum power dissipation of 462W (Tc). The APTC60SKM24T1G offers a low on-resistance (Rds On) of 24mOhm at 47.5A and 10V gate drive, and a gate charge of 300 nC at 10V. With a chassis mount package (SP1) and an operating temperature range of -40°C to 150°C (TJ), this MOSFET is suitable for demanding applications in industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: CoolMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP1 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 95A (Tc) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 47.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 462W (Tc) |
| Vgs(th) (Max) @ Id | 3.9V @ 5mA |
| Supplier Device Package | SP1 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 300 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 14400 pF @ 25 V |
