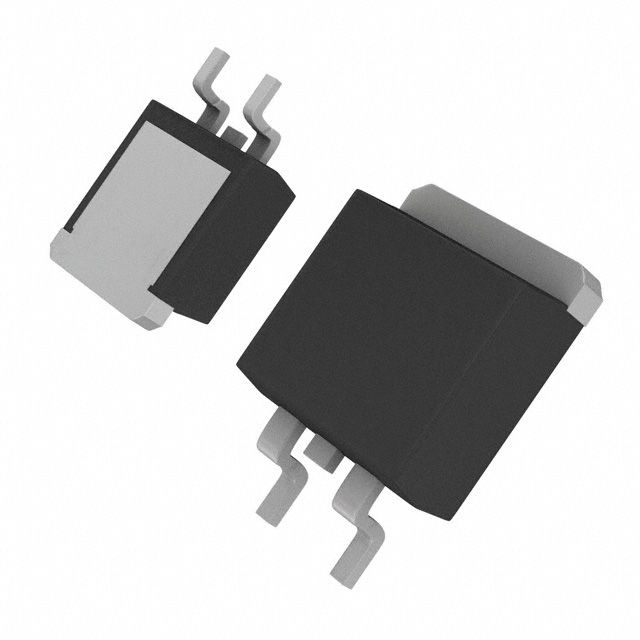

APT60N60SCSG/TR
MOSFET N-CH 600V 60A D3PAKManufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 60A (Tc) 431W (Tc) Surface Mount D3PAK
Additional Information
Series: CoolMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 44A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 431W (Tc) |
| Vgs(th) (Max) @ Id | 3.9V @ 3mA |
| Supplier Device Package | D3PAK |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 190 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7200 pF @ 25 V |
