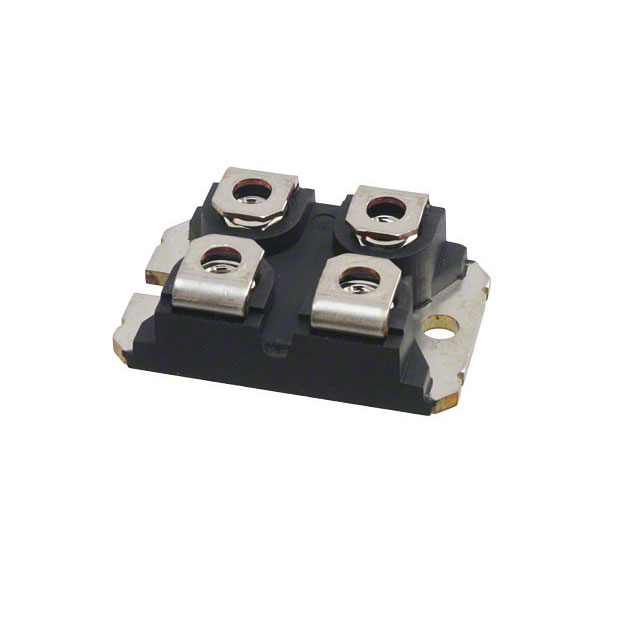

APT5010JVRU2
MOSFET N-CH 500V 44A SOT227Manufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 500 V 44A (Tc) 450W (Tc) Chassis Mount SOT-227
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 44A (Tc) |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 22A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 450W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA |
| Supplier Device Package | SOT-227 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 500 V |
| Gate Charge (Qg) (Max) @ Vgs | 312 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7410 pF @ 25 V |
Request a Quote
Clients Also Buy

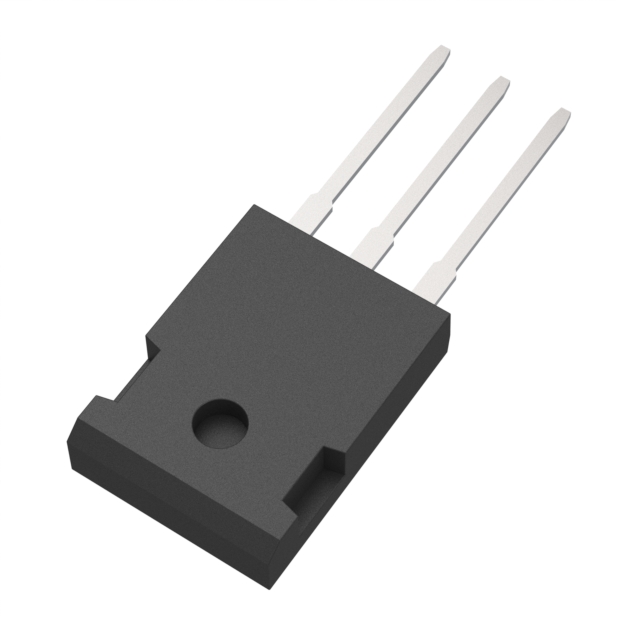

APT6021BFLLG
