APT13F120B
MOSFET N-CH 1200V 14A TO247Manufacturer: Microchip Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More

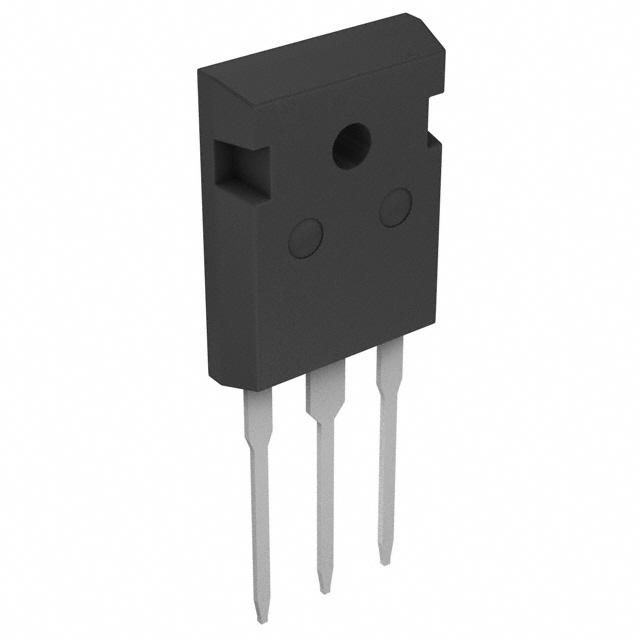

Microchip Technology APT13F120B is a N-Channel Power MOSFET designed for high-voltage switching applications. This component features a Drain-Source Voltage (Vdss) of 1200 V and a continuous drain current (Id) of 14A at 25°C (Tc). The device offers a low on-resistance (Rds On) of 1.4 Ohm maximum at 7A and 10V gate drive, with a maximum power dissipation of 625W (Tc). Key parameters include a gate charge (Qg) of 145 nC at 10V and input capacitance (Ciss) of 4765 pF at 25V. The APT13F120B is housed in a TO-247-3 package, suitable for through-hole mounting, and operates within a temperature range of -55°C to 150°C (TJ). This MOSFET is utilized in power supply units, industrial motor control, and electric vehicle charging infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 7A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 625W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 1mA |
| Supplier Device Package | TO-247 [B] |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 145 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4765 pF @ 25 V |
