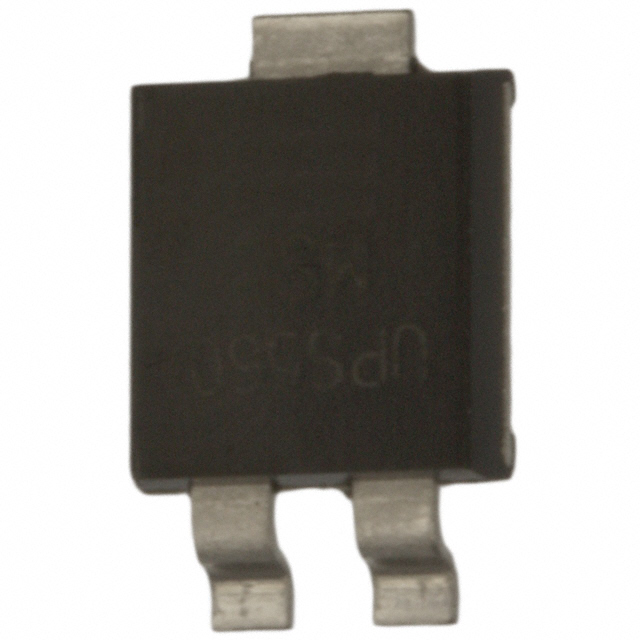

UPS560E3/TR13
DIODE SCHOTTKY 60V 5A POWERMITE3Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Diode 60 V 5A Surface Mount Powermite 3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Powermite®3 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 150pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | Powermite 3 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 690 mV @ 5 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V |
Request a Quote
