UPS360E3/TR13

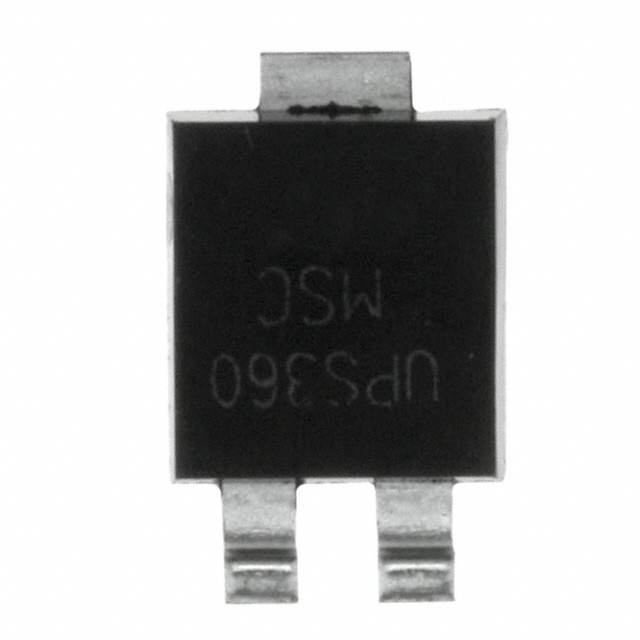

DIODE SCHOTTKY 60V 3A POWERMITE3Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology's UPS360E3-TR13 is a Schottky diode designed for efficient power rectification. This component features a 60V reverse voltage rating and a 3A average rectified current capability. The forward voltage drop at 3.5A is a low 630mV, contributing to reduced power loss. Its fast recovery time ensures optimal performance in high-frequency switching applications. The device exhibits a reverse leakage current of 200 µA at its maximum reverse voltage of 60V, with a junction capacitance of 130pF measured at 4V and 1MHz. The UPS360E3-TR13 is housed in a compact Powermite®3 surface mount package, ideal for space-constrained designs. It operates across a junction temperature range of -55°C to 125°C, making it suitable for demanding applications in power supply units, automotive electronics, and industrial control systems. The component is supplied in Tape & Reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Powermite®3 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 130pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | Powermite 3 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 3.5 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V |
