UES2602
DIODE GEN PURP 100V 30A TO204AAManufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More

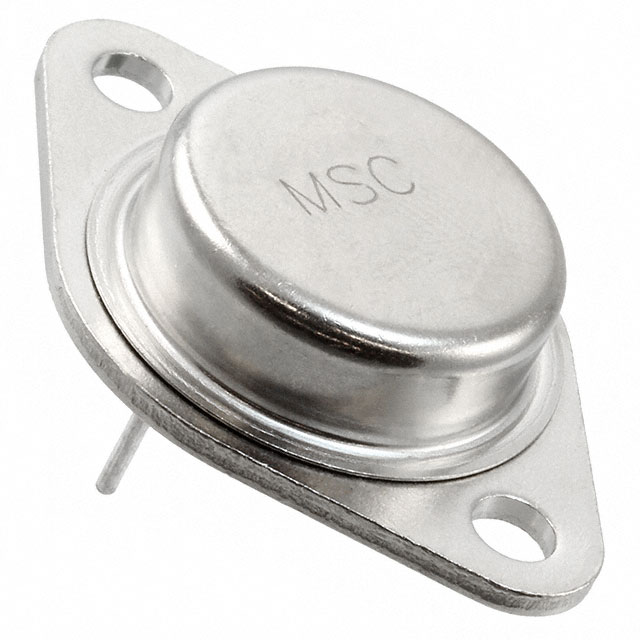

Microchip Technology UES2602 is a general-purpose diode with a 100V reverse voltage rating and a 30A average rectified current. This through-hole component, housed in a TO-204AA (TO-3) package, features a forward voltage of 930mV at 15A. The UES2602 exhibits a reverse leakage current of 20 µA at 100V and a reverse recovery time of 35 ns, classifying it as a fast-recovery diode. Operating across a junction temperature range of -55°C to 175°C, this device is suitable for applications in power supply, motor control, and automotive systems. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO-204AA (TO-3) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 930 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 100 V |
