S30760
DIODE GEN PURP 600V 85A DO5Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More

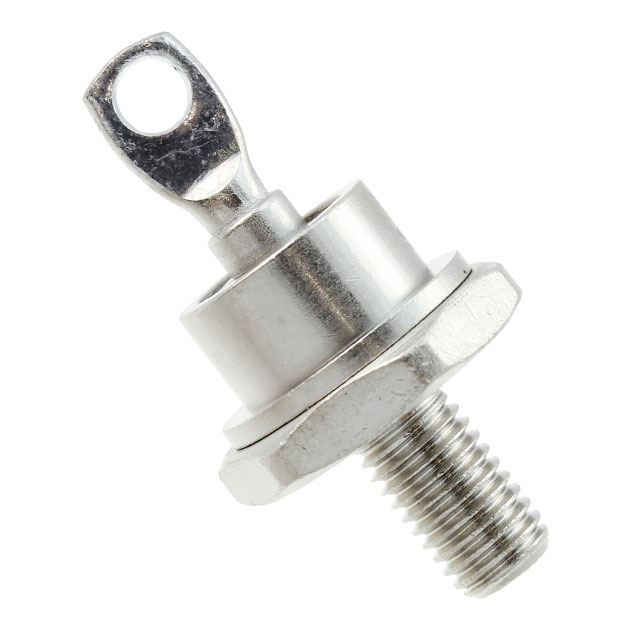

Microchip Technology's S30760 is a general-purpose stud-mount diode with a maximum repetitive reverse voltage of 600 V. This component is rated for an average rectified forward current of 85 A and features a low reverse leakage of 25 µA at 600 V. The DO-5 (DO-203AB) package with stud mount facilitates efficient thermal management. Operating across a junction temperature range of -65°C to 200°C, the S30760 is suitable for high-power applications. Its fast recovery time, defined as less than 500 ns for currents greater than 200 mA, makes it a reliable choice for power conversion and control circuits. This diode finds application in industrial power supplies, welding equipment, and motor control systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Stud Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 85A |
| Supplier Device Package | DO-5 |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Reverse Leakage @ Vr | 25 µA @ 600 V |
