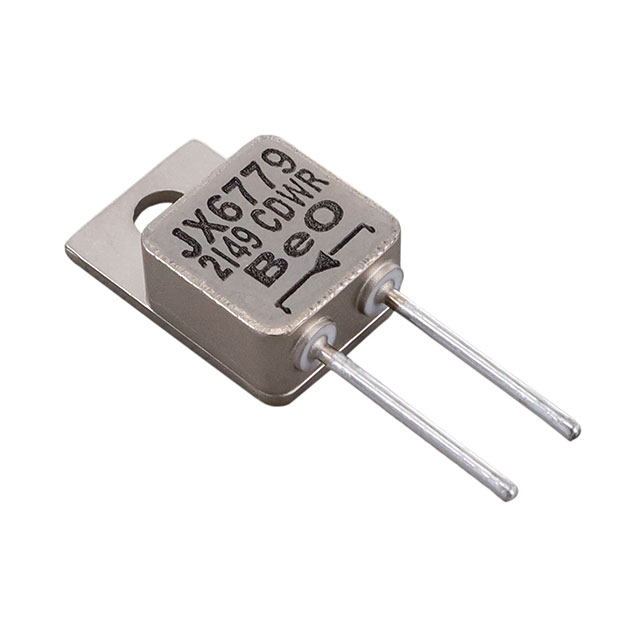

JANTX1N6779
DIODE GEN PURP 600V 15A TO257Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Diode 600 V 15A Through Hole TO-257
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-257-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 300pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-257 |
| Operating Temperature - Junction | 150°C (Max) |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 15 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 480 V |
| Qualification | MIL-PRF-19500/647 |
