JANTX1N4454-1/TR

Banner
productimage

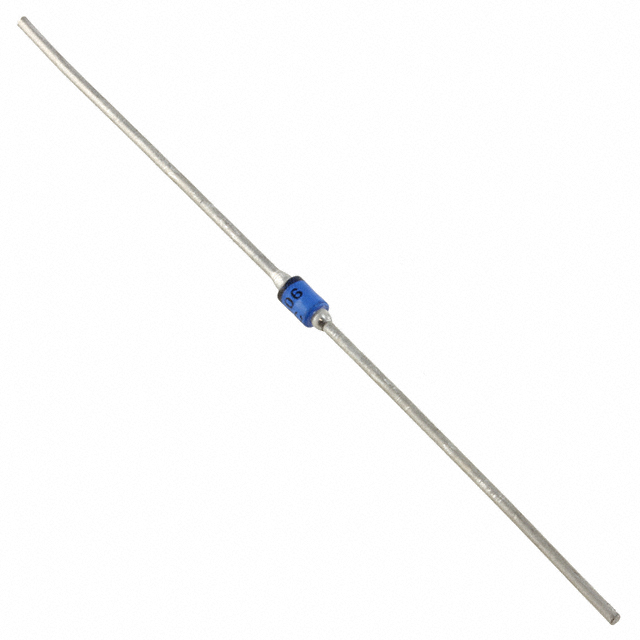

JANTX1N4454-1/TR

DIODE GEN PURP 50V 200MA DO35

Manufacturer: Microchip Technology

Categories: Single Diodes

Quality Control: Learn More

Microchip Technology JANTX1N4454-1-TR is a military-grade, general-purpose diode in a DO-204AH (DO-35) axial package, supplied on tape and reel. This component offers a 50V reverse voltage rating and a 200mA average rectified forward current. It features a low 100 nA reverse leakage at 50V and a typical 1V forward voltage drop at 10mA. The diode exhibits a 4ns reverse recovery time, classifying it within the small signal category. Designed to meet MIL-PRF-19500/144 qualification, it operates across an extended temperature range of -65°C to 175°C. This diode is commonly utilized in aerospace, defense, and high-reliability industrial applications demanding robust performance.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / CaseDO-204AH, DO-35, Axial
Mounting TypeThrough Hole
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
TechnologyStandard
Capacitance @ Vr, F-
Current - Average Rectified (Io)200mA
Supplier Device PackageDO-204AH (DO-35)
Operating Temperature - Junction-65°C ~ 175°C
GradeMilitary
Voltage - DC Reverse (Vr) (Max)50 V
Voltage - Forward (Vf) (Max) @ If1 V @ 10 mA
Current - Reverse Leakage @ Vr100 nA @ 50 V
QualificationMIL-PRF-19500/144
