JANTX1N4148UB2R

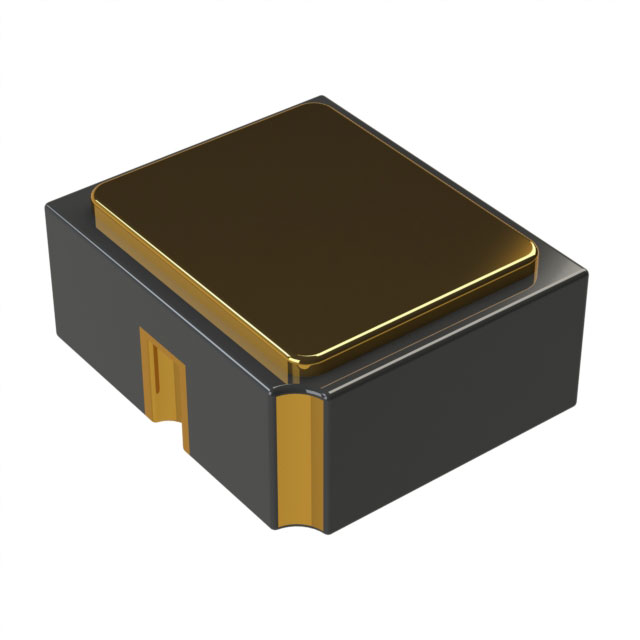

DIODE GEN PURP 75V 200MA UB2RManufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology JANTX1N4148UB2R is a military-grade, general-purpose switching diode designed for demanding applications. This component, qualified to MIL-PRF-19500/116, features a maximum reverse voltage of 75V and an average rectified forward current of 200mA. Its UB2R surface-mount package, a 2-SMD, No Lead configuration, facilitates efficient board assembly. The diode exhibits a forward voltage drop of 1.2V at 100mA and a reverse leakage current of 500 nA at 75V. With a reverse recovery time of 20 ns and a junction operating temperature range of -65°C to 200°C, this standard, reverse polarity device is suitable for use in aerospace, defense, and high-reliability industrial systems. Its low capacitance of 4pF at 0V and 1MHz contributes to its performance in high-frequency switching circuits.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 20 ns |
| Technology | Standard, Reverse Polarity |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | UB2R |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 75 V |
| Qualification | MIL-PRF-19500/116 |
