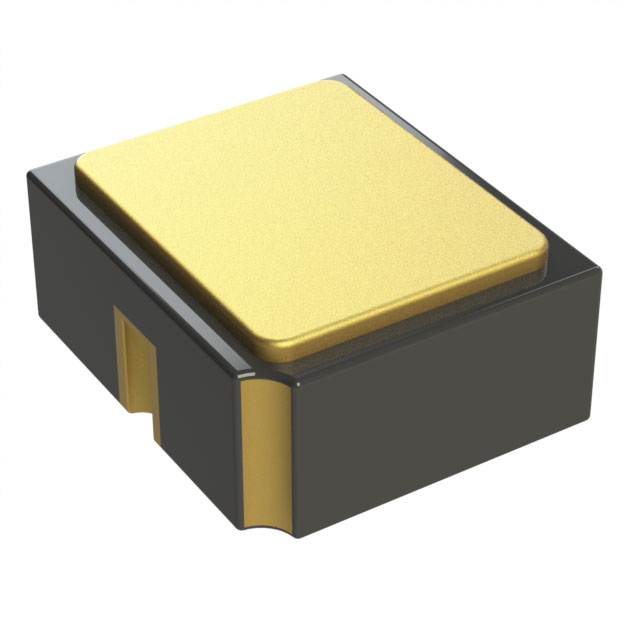

JANTX1N4148UB2/TR
SIGNAL OR COMPUTER DIODEManufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology JANTX1N4148UB2-TR is a military-grade, general-purpose switching diode designed for high-reliability applications. This component, part of a standard technology and supplied in a UB2 package, features a maximum DC reverse voltage of 75 V and an average rectified forward current of 200 mA. Its forward voltage drop is 1.2 V at 100 mA, with a typical reverse leakage current of 500 nA at 75 V. The diode exhibits a reverse recovery time (trr) of 20 ns and a low junction capacitance of 4 pF at 0 V and 1 MHz. Qualified to MIL-PRF-19500/116 standards, this surface-mount device is suitable for demanding environments, including aerospace, defense, and industrial control systems. The JANTX1N4148UB2-TR is provided in Tape & Reel (TR) packaging for efficient automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 20 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | UB2 |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 75 V |
| Qualification | MIL-PRF-19500/116 |
