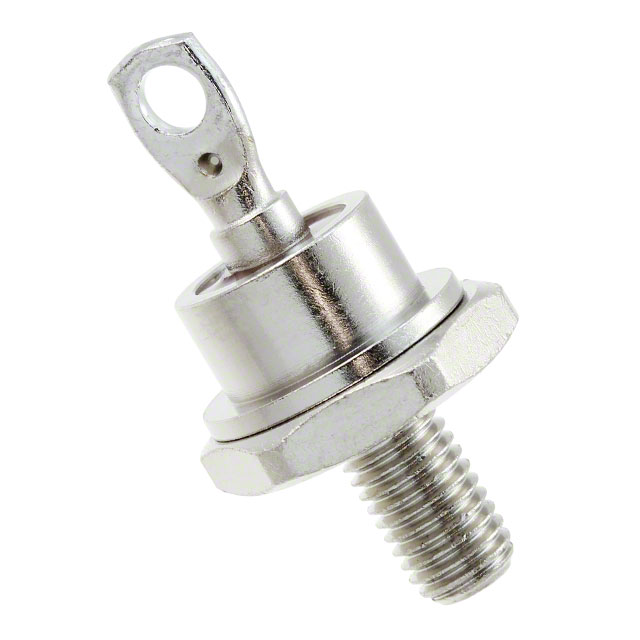

JANTX1N1190R
DIODE GEN PURP 600V 35A DO5Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology JANTX1N1190R is a military-grade, general-purpose diode with a maximum DC reverse voltage of 600 V and an average rectified current handling capability of 35 A. This device features a fast recovery time, specified as less than or equal to 500 ns for currents greater than 200 mA. The forward voltage drop (Vf) is a maximum of 1.4 V at a forward current (If) of 110 A. Reverse leakage current at the maximum reverse voltage is a low 10 µA.
The JANTX1N1190R is housed in a DO-203AB (DO-5) stud mount package, facilitating robust thermal management. It is qualified to MIL-PRF-19500/297 standards and operates across a wide junction temperature range of -65°C to 175°C. This component is suitable for demanding applications in power supply rectification, motor control, and industrial equipment where reliability and high current handling are critical.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Stud Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard, Reverse Polarity |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 35A |
| Supplier Device Package | DO-5 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 110 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Qualification | MIL-PRF-19500/297 |
