JANTX1N1184
DIODE GEN PURP 100V 35A DO5Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More

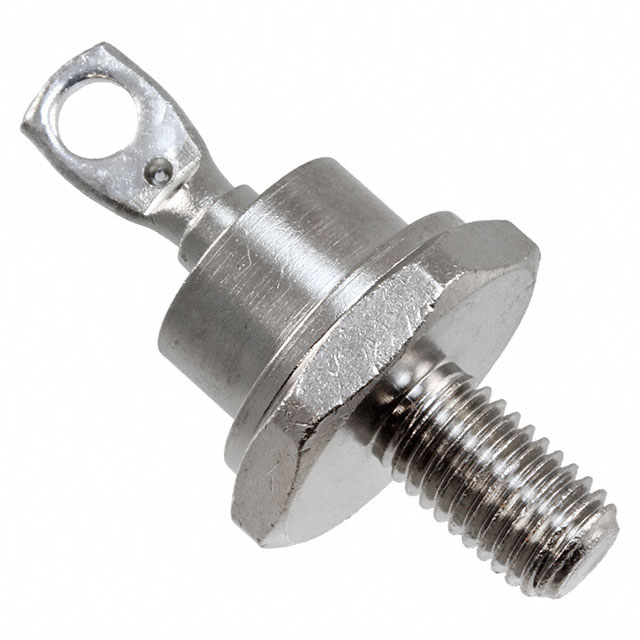

Microchip Technology JANTX1N1184 is a General Purpose Rectifier Diode with a maximum DC reverse voltage of 100V and an average rectified current of 35A. This military-grade component features a standard recovery speed exceeding 500ns and 200mA. The forward voltage drop is a maximum of 1.4V at 110A, with a reverse leakage current of 10 µA at 100V. Designed for robustness, it is housed in a DO-203AB, DO-5 stud-mount package suitable for chassis mounting. Operating temperature ranges from -65°C to 175°C. This diode conforms to MIL-PRF-19500/297 qualification standards. It finds application in power supply, industrial control, and aerospace systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Chassis, Stud Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 35A |
| Supplier Device Package | DO-5 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 110 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
| Qualification | MIL-PRF-19500/297 |
