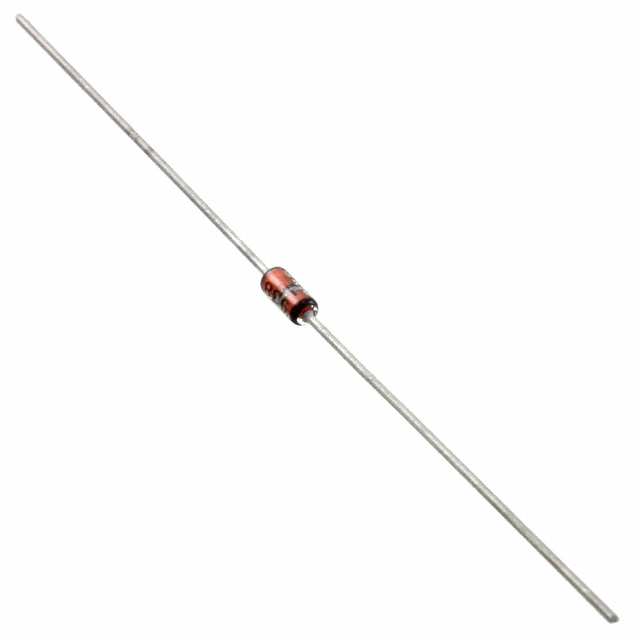

JANS1N6642

DIODE GEN PURP 75V 300MA DO204AH

Manufacturer: Microchip Technology

Categories: Single Diodes

Quality Control: Learn More

Microchip Technology JANS1N6642 is a military-grade general-purpose diode featuring a 75V reverse voltage rating and 300mA average rectified current capability. This component employs standard rectifier technology with a fast recovery time of 5ns, suitable for applications requiring switching speeds greater than 200mA (Io). The diode exhibits a maximum forward voltage of 1.2V at 100mA and a reverse leakage of 500 nA at its maximum reverse voltage. With a junction operating temperature range of -65°C to 175°C, it is housed in a DO-204AH (DO-35) axial package, facilitating through-hole mounting. The capacitance at 0V and 1MHz is specified at 5pF. This component is qualified to MIL-PRF-19500/578 and is supplied in bulk packaging, finding application in various defense and aerospace systems.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 32 week(s)Product Status: UnknownPackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseDO-204AH, DO-35, Axial
Mounting TypeThrough Hole
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)5 ns
TechnologyStandard
Capacitance @ Vr, F5pF @ 0V, 1MHz
Current - Average Rectified (Io)300mA
Supplier Device PackageDO-204AH (DO-35)
Operating Temperature - Junction-65°C ~ 175°C
GradeMilitary
Voltage - DC Reverse (Vr) (Max)75 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 100 mA
Current - Reverse Leakage @ Vr500 nA @ 75 V
QualificationMIL-PRF-19500/578
