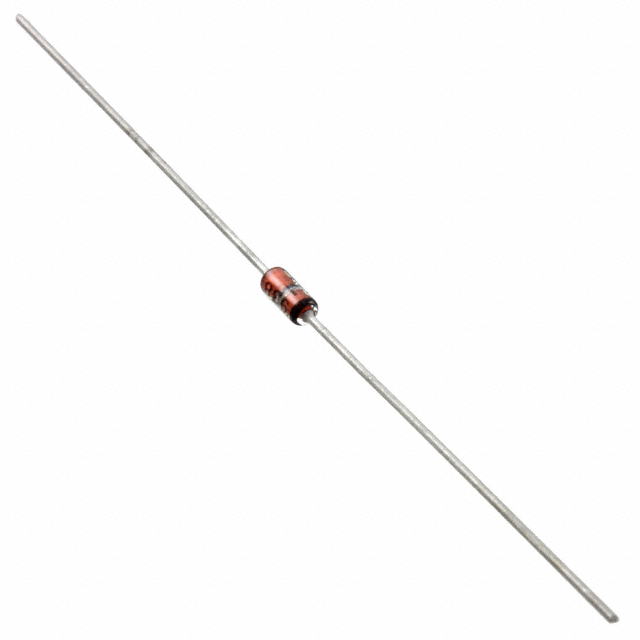

JANS1N6638
DIODE GEN PURP 125V 300MA DO204Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
The Microchip Technology JANS1N6638 is a general-purpose diode designed for high-reliability applications. Featuring a maximum reverse voltage of 125V and an average rectified current of 300mA, this component is suitable for demanding environments. Its DO-204AH (DO-35) axial package facilitates through-hole mounting. The diode exhibits a low reverse leakage current of 500 nA at 125V and a forward voltage drop of 1.1V at 200mA. With a fast reverse recovery time of 4.5 ns, it is classified for military grade under MIL-PRF-19500/578 qualification and operates across a junction temperature range of -65°C to 175°C. This diode is commonly utilized in aerospace, defense, and industrial power management systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4.5 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 2.5pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 300mA |
| Supplier Device Package | DO-204AH (DO-35) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 125 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 125 V |
| Qualification | MIL-PRF-19500/578 |
