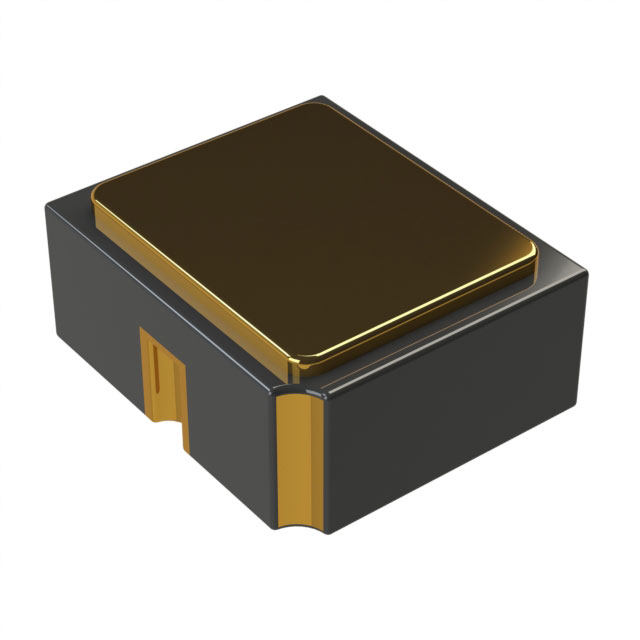

JAN1N4148UB2R
DIODE GEN PURP 75V 200MA UB2RManufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology JAN1N4148UB2R is a military-grade general-purpose diode. This surface mount component, utilizing standard technology in a UB2R package, offers a maximum repetitive reverse voltage of 75V and an average rectified forward current of 200mA. It exhibits a forward voltage drop of 1.2V at 100mA and a reverse leakage current of 500nA at 75V. The diode features a reverse recovery time of 20ns and a capacitance of 4pF at 0V and 1MHz. Operating across a junction temperature range of -65°C to 200°C, this device adheres to MIL-PRF-19500/116 qualification standards. Its robust specifications make it suitable for applications in aerospace, defense, and high-reliability industrial systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 20 ns |
| Technology | Standard, Reverse Polarity |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | UB2R |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 75 V |
| Qualification | MIL-PRF-19500/116 |
