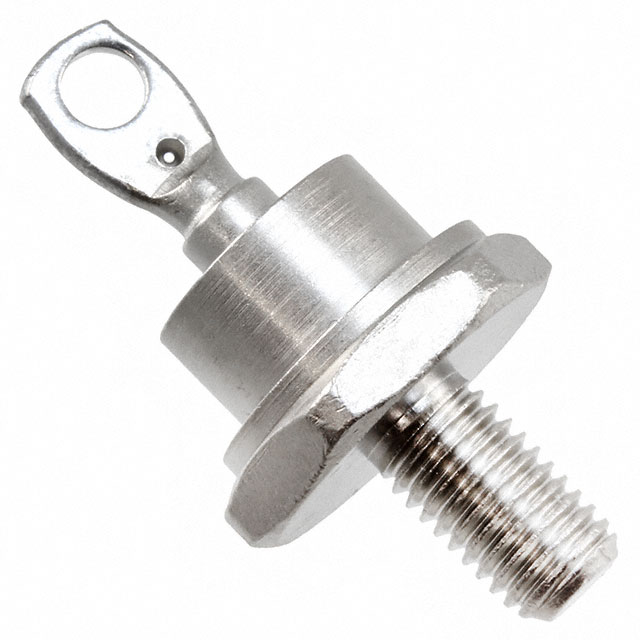

JAN1N1188
DIODE GEN PURP 400V 35A DO5Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology JAN1N1188 is a general-purpose rectifier diode with a 400V reverse voltage rating and a 35A average rectified current capability. This stud-mount DO-5 package component, qualified to MIL-PRF-19500/297, offers a maximum forward voltage of 1.4V at 110A. The JAN1N1188 exhibits a low reverse leakage current of 10 µA at 400V. Its operating junction temperature range is -65°C to 175°C. This device is suitable for applications in aerospace and defense, as well as high-power industrial systems requiring robust rectification.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Stud Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 35A |
| Supplier Device Package | DO-5 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 110 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Qualification | MIL-PRF-19500/297 |
