APT75DQ60BG
DIODE GP 600V 75A TO247Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More

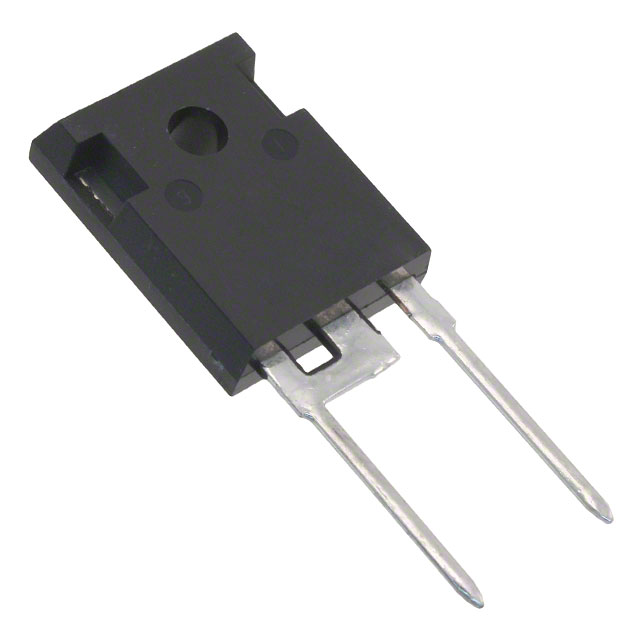

Diode 600 V 75A Through Hole TO-247 [B]
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 31 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 75A |
| Supplier Device Package | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.5 V @ 75 A |
| Current - Reverse Leakage @ Vr | 25 µA @ 600 V |
