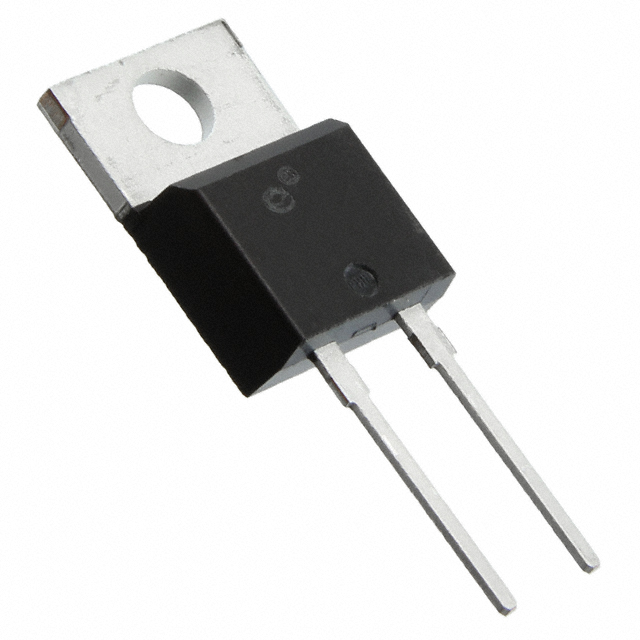

APT15D40KG
DIODE GP 400V 15A TO220Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology APT15D40KG is a general-purpose diode with a 400V reverse voltage rating and a 15A average rectified current (Io). This fast-recovery diode, featuring a reverse recovery time (trr) of 35 ns, is housed in a TO-220-2 package for through-hole mounting. It exhibits a maximum forward voltage (Vf) of 1.5V at 15A and a reverse leakage current of 150 µA at its maximum reverse voltage. The operating junction temperature range is -55°C to 175°C. This component is suitable for applications in power supply rectification and switching power circuits.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 15 A |
| Current - Reverse Leakage @ Vr | 150 µA @ 400 V |
