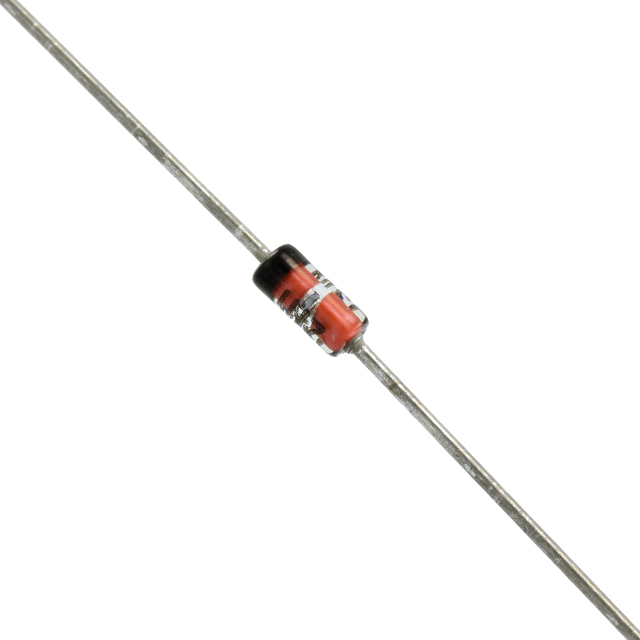

1N485
DIODE GEN PURP 180V 100MA DO7Manufacturer: Microchip Technology
Categories: Single Diodes
Quality Control: Learn More
Microchip Technology 1N485 is a general-purpose diode featuring a reverse voltage rating of 180V and an average rectified current of 100mA. This through-hole component, housed in a DO-7 (DO-204AA) axial package, exhibits a forward voltage of 1V at 100mA and a low reverse leakage current of 25 nA at its maximum reverse voltage. Operating across a junction temperature range of -65°C to 175°C, the 1N485 is suitable for applications requiring small signal rectification. Industries that commonly utilize this type of diode include industrial controls and general electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AA, DO-7, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | DO-7 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 180 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 25 nA @ 180 V |
