JANTXV2N6301
TRANS PNP DARL 80V 8A TO66Manufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More

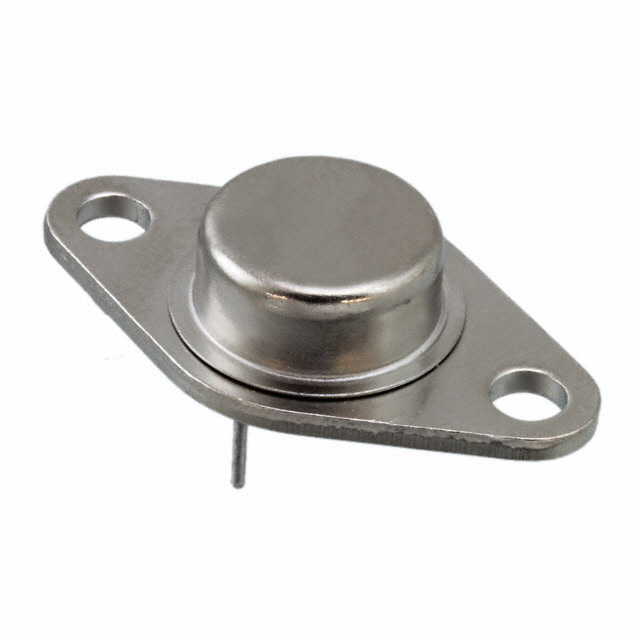

Microchip Technology JANTXV2N6301 PNP Darlington bipolar transistor. This component features an 80V collector-emitter breakdown voltage and a maximum continuous collector current of 8A. With a power dissipation capability of 75W and a minimum DC current gain (hFE) of 750 at 4A and 3V, it is suited for high-reliability applications. The device operates within a temperature range of -55°C to 200°C (TJ) and is housed in a TO-66 package. Qualification to MIL-PRF-19500/539 signifies its suitability for stringent military and aerospace demands. This transistor is commonly employed in power switching and amplification circuits across various industrial sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-213AA, TO-66-2 |
| Mounting Type | Through Hole |
| Transistor Type | PNP - Darlington |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 80mA, 8A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 4A, 3V |
| Frequency - Transition | - |
| Supplier Device Package | TO-66 |
| Grade | Military |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 75 W |
| Qualification | MIL-PRF-19500/539 |
