JANTXV2N5745

Banner
productimage

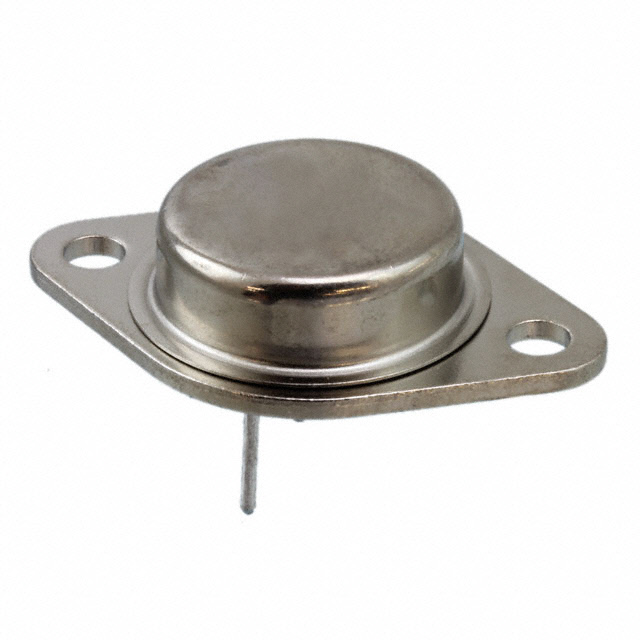

JANTXV2N5745

TRANS PNP 80V 20A TO3

Manufacturer: Microchip Technology

Categories: Single Bipolar Transistors

Quality Control: Learn More

Microchip Technology JANTXV2N5745 is a high-reliability, military-grade PNP bipolar junction transistor. This device features a 80V collector-emitter breakdown voltage and a maximum continuous collector current of 20A. The power dissipation is rated at 5W, with a minimum DC current gain (hFE) of 15 at 10A collector current and 2V collector-emitter voltage. The saturation voltage at 1A base current and 10A collector current is a maximum of 1V. Designed for demanding applications, this transistor is qualified to MIL-PRF-19500/433 and operates across a wide temperature range of -55°C to 200°C. It is packaged in a TO-3 (TO-204AA) through-hole configuration. This component is commonly utilized in power switching and amplification circuits within aerospace and defense systems.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseTO-204AA, TO-3
Mounting TypeThrough Hole
Transistor TypePNP
Operating Temperature-55°C ~ 200°C (TJ)
Vce Saturation (Max) @ Ib, Ic1V @ 1A, 10A
Current - Collector Cutoff (Max)100µA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 10A, 2V
Frequency - Transition-
Supplier Device PackageTO-3
GradeMilitary
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)80 V
Power - Max5 W
QualificationMIL-PRF-19500/433
