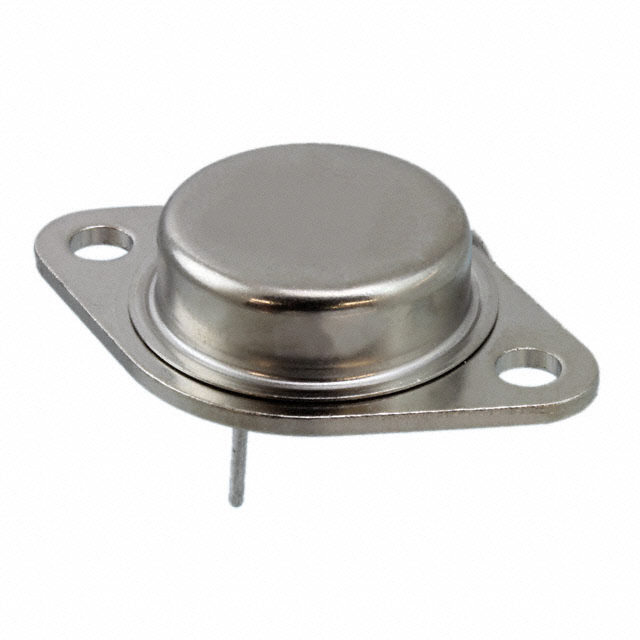

JANTX2N6284

TRANS NPN DARL 100V 20A TO204AA

Manufacturer: Microchip Technology

Categories: Single Bipolar Transistors

Quality Control: Learn More

Microchip Technology JANTX2N6284 is an NPN Darlington bipolar transistor designed for demanding applications. This through-hole component, housed in a TO-204AA (TO-3) package, offers a collector-emitter breakdown voltage of 100V and a continuous collector current capability of 20A. With a maximum power dissipation of 175W and a minimum DC current gain (hFE) of 1250 at 10A and 3V, it provides robust amplification and switching characteristics. The saturation voltage (Vce Sat) is specified at a maximum of 3V for 200mA base current and 20A collector current. This device is qualified to MIL-PRF-19500/504, indicating its suitability for military and high-reliability applications. It operates across a wide temperature range from -65°C to 200°C (TJ). The JANTX2N6284 is commonly utilized in power supply circuits, motor control, and high-current switching applications.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseTO-204AA, TO-3
Mounting TypeThrough Hole
Transistor TypeNPN - Darlington
Operating Temperature-65°C ~ 200°C (TJ)
Vce Saturation (Max) @ Ib, Ic3V @ 200mA, 20A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce1250 @ 10A, 3V
Frequency - Transition-
Supplier Device PackageTO-204AA (TO-3)
GradeMilitary
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)100 V
Power - Max175 W
QualificationMIL-PRF-19500/504
