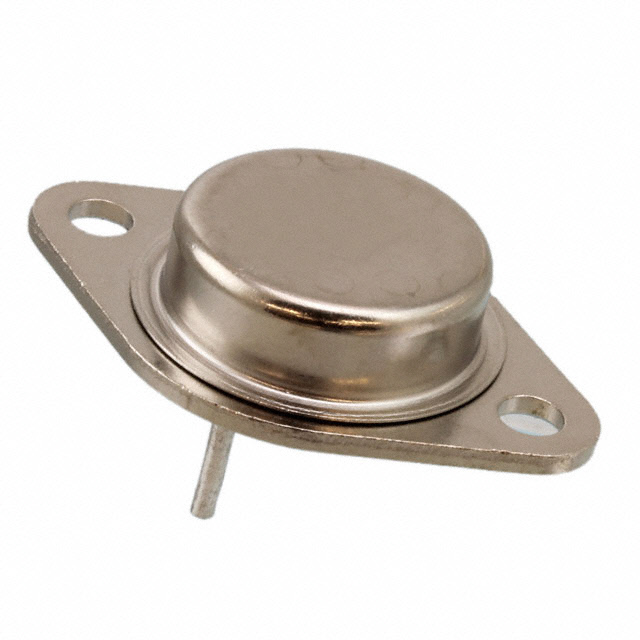

JANTX2N6274

TRANS NPN 100V 50A TO3

Manufacturer: Microchip Technology

Categories: Single Bipolar Transistors

Quality Control: Learn More

Microchip Technology JANTX2N6274 is an NPN bipolar junction transistor (BJT) designed for robust performance. This military-grade component, qualified to MIL-PRF-19500/514, offers a collector-emitter breakdown voltage of 100 V and a continuous collector current capability of up to 50 A. With a maximum power dissipation of 250 W and a low saturation voltage of 3V at 10A/50A, it is suitable for high-power switching and amplification applications. The device features a minimum DC current gain (hFE) of 30 at 20A and 4V. Packaged in a TO-3 (TO-204AE) through-hole configuration, it operates across a wide temperature range from -65°C to 200°C. This transistor is commonly employed in power supply, motor control, and industrial automation systems.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseTO-204AE
Mounting TypeThrough Hole
Transistor TypeNPN
Operating Temperature-65°C ~ 200°C (TJ)
Vce Saturation (Max) @ Ib, Ic3V @ 10A, 50A
Current - Collector Cutoff (Max)50µA
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 20A, 4V
Frequency - Transition-
Supplier Device PackageTO-3
GradeMilitary
Current - Collector (Ic) (Max)50 A
Voltage - Collector Emitter Breakdown (Max)100 V
Power - Max250 W
QualificationMIL-PRF-19500/514
