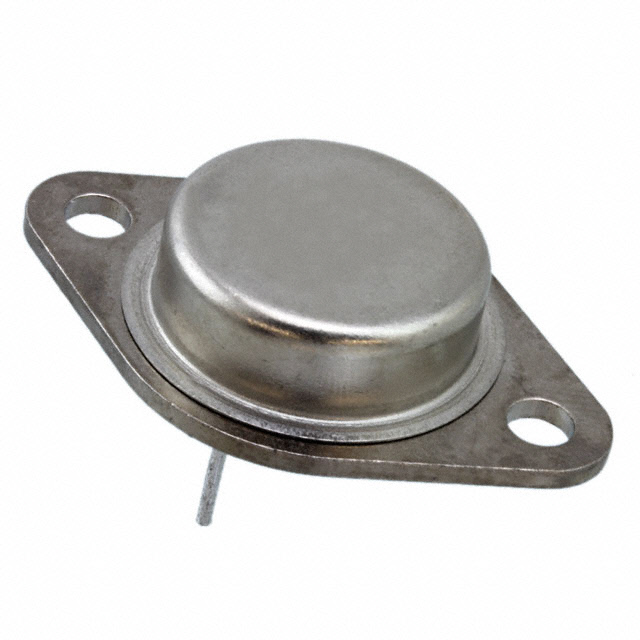

JANTX2N6051

TRANS PNP DARL 80V 12A TO204AA

Manufacturer: Microchip Technology

Categories: Single Bipolar Transistors

Quality Control: Learn More

Microchip Technology's JANTX2N6051 is a PNP Darlington bipolar transistor designed for high-power switching and amplification applications. This component features a robust 80V collector-emitter breakdown voltage and a maximum collector current of 12A, enabling it to handle demanding load requirements. With a significant power dissipation rating of 150W and a high DC current gain (hFE) of 1000 minimum at 6A and 3V, it ensures efficient operation. The transistor is housed in a TO-204AA (TO-3) package, facilitating through-hole mounting and thermal management. Qualified to MIL-PRF-19500/501 and operating across a temperature range of -55°C to 175°C, the JANTX2N6051 is suitable for military and industrial applications requiring reliability under harsh conditions. Its low saturation voltage of 3V at 120mA and 12A further contributes to power efficiency.

Additional Information

Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseTO-204AA, TO-3
Mounting TypeThrough Hole
Transistor TypePNP - Darlington
Operating Temperature-55°C ~ 175°C (TJ)
Vce Saturation (Max) @ Ib, Ic3V @ 120mA, 12A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 6A, 3V
Frequency - Transition-
Supplier Device PackageTO-204AA (TO-3)
GradeMilitary
Current - Collector (Ic) (Max)12 A
Voltage - Collector Emitter Breakdown (Max)80 V
Power - Max150 W
QualificationMIL-PRF-19500/501
