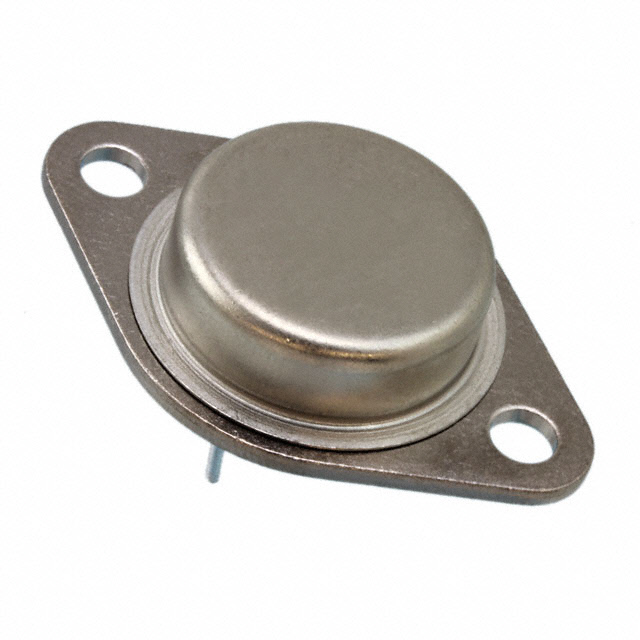

JANTX2N5303
TRANS NPN 80V 20A TO3Manufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Microchip Technology JANTX2N5303 is an NPN bipolar junction transistor (BJT) designed for demanding applications. This through-hole component features a TO-3 (TO-204AA) package, supporting a maximum collector current of 20 A and a collector-emitter breakdown voltage of 80 V. With a power dissipation of 5 W, it exhibits a minimum DC current gain (hFE) of 15 at 10 A and 2 V. The device is qualified to MIL-PRF-19500/456, indicating suitability for military and high-reliability applications. This transistor is commonly utilized in power switching, linear amplification, and general-purpose amplification circuits within industrial and defense sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | - |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 4A, 20A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 10A, 2V |
| Frequency - Transition | - |
| Supplier Device Package | TO-3 (TO-204AA) |
| Grade | Military |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 5 W |
| Qualification | MIL-PRF-19500/456 |
