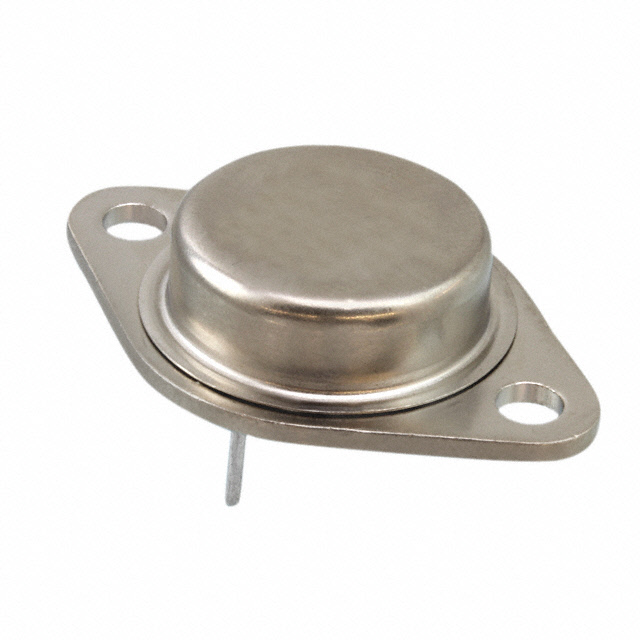

JANTX2N3772
TRANS NPN 60V 20A TO3Manufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Microchip Technology JANTX2N3772 is an NPN bipolar junction transistor (BJT) designed for high-power applications. This through-hole component, housed in a TO-3 (TO-204AA) package, offers a maximum collector current of 20 A and a breakdown voltage (Vce) of 60 V. With a maximum power dissipation of 6 W and a wide operating temperature range of -65°C to 200°C, the JANTX2N3772 is qualified to MIL-PRF-19500/518, indicating its suitability for demanding military and industrial environments. Key electrical specifications include a minimum DC current gain (hFE) of 15 at 10 A and 4 V, and a saturation voltage (Vce(sat)) of 4 V at 4 A collector current. Industries utilizing this component include aerospace, defense, and industrial power control.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 4A, 20A |
| Current - Collector Cutoff (Max) | 5mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 10A, 4V |
| Frequency - Transition | - |
| Supplier Device Package | TO-3 |
| Grade | Military |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 6 W |
| Qualification | MIL-PRF-19500/518 |
