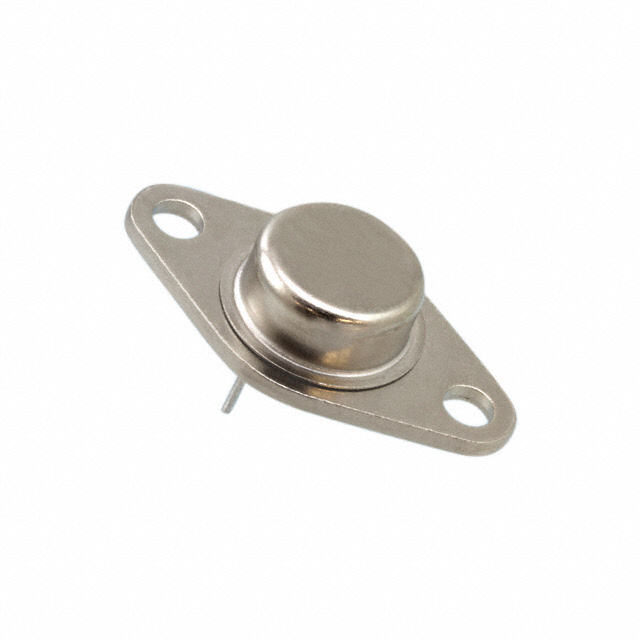

JANTX2N3739
TRANS NPN 300V 1A TO66Manufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 300 V 1 A 20 W
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Mounting Type | - |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 25mA, 250mA |
| Current - Collector Cutoff (Max) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 250mA, 10V |
| Frequency - Transition | - |
| Supplier Device Package | - |
| Grade | Military |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Power - Max | 20 W |
| Qualification | MIL-PRF-19500/402 |
