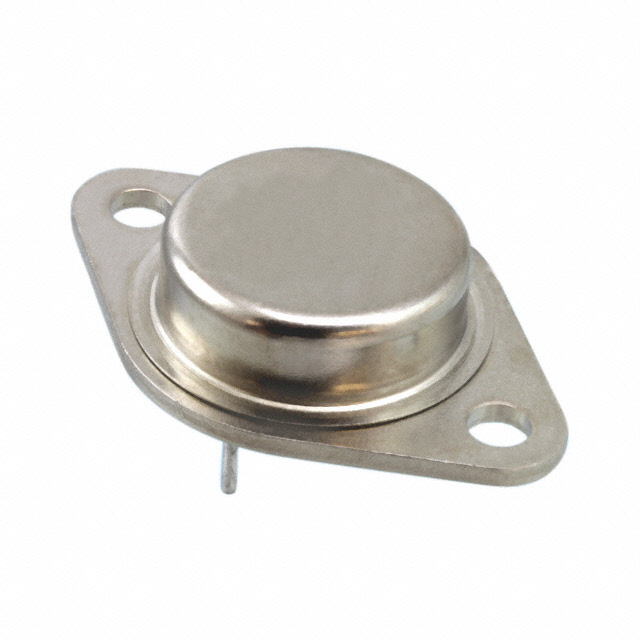

JANTX2N3442
TRANS NPN 140V 10A TO3Manufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Microchip Technology JANTX2N3442 is an NPN bipolar junction transistor rated for 140V collector-emitter breakdown voltage and a continuous collector current of 10A. This device features a maximum power dissipation of 6W and a DC current gain (hFE) of at least 20 at 3A collector current and 4V Vce. The saturation voltage (Vce(sat)) is specified at 1V maximum for a base current of 300mA and a collector current of 3A. Designed for high-reliability applications, this transistor is qualified under MIL-PRF-19500/307 and operates across a temperature range of -55°C to 200°C. It is packaged in the TO-204AA (TO-3) through-hole format, suitable for power switching and amplification in demanding environments, including aerospace and defense systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 300mA, 3A |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 3A, 4V |
| Frequency - Transition | - |
| Supplier Device Package | TO-3 |
| Grade | Military |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Power - Max | 6 W |
| Qualification | MIL-PRF-19500/307 |
