JANSG2N3439U4
RH POWER BJTManufacturer: Microchip Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More

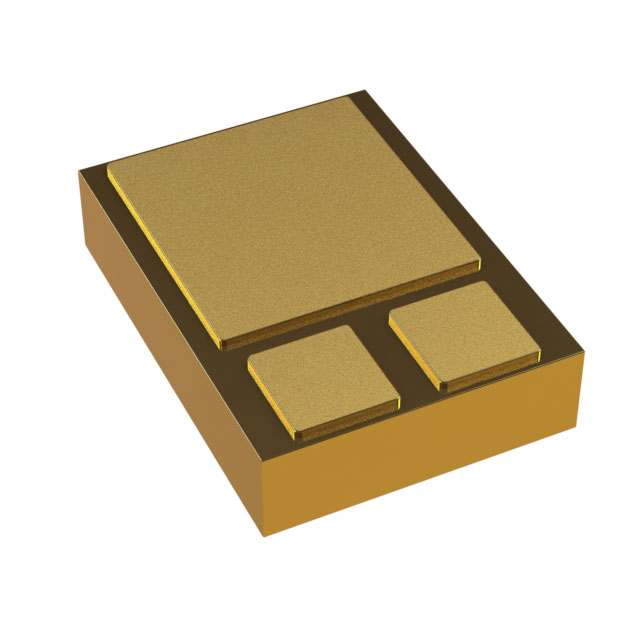

Microchip Technology JANSG2N3439U4 is an NPN bipolar junction transistor (BJT) designed for high-reliability applications. This surface-mount component, packaged in a U4 (3-SMD, No Lead) configuration, offers a 350V collector-emitter breakdown voltage and a maximum collector current of 1A. It features a low saturation voltage of 500mV at 4mA base current and 50mA collector current, with a minimum DC current gain of 40 at 20mA collector current and 10V collector-emitter voltage. The device dissipates a maximum of 800mW and operates across a wide temperature range of -65°C to 200°C. This transistor is commonly utilized in industrial, defense, and aerospace sectors requiring robust performance in demanding environments.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-SMD, No Lead |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 4mA, 50mA |
| Current - Collector Cutoff (Max) | 2µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 20mA, 10V |
| Frequency - Transition | - |
| Supplier Device Package | U4 |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 350 V |
| Power - Max | 800 mW |
